Squaring line for fiber-cement boards - Output 2400 pcs/shift

■ Automation systems   ■ Profiling machines and double-end tenoners

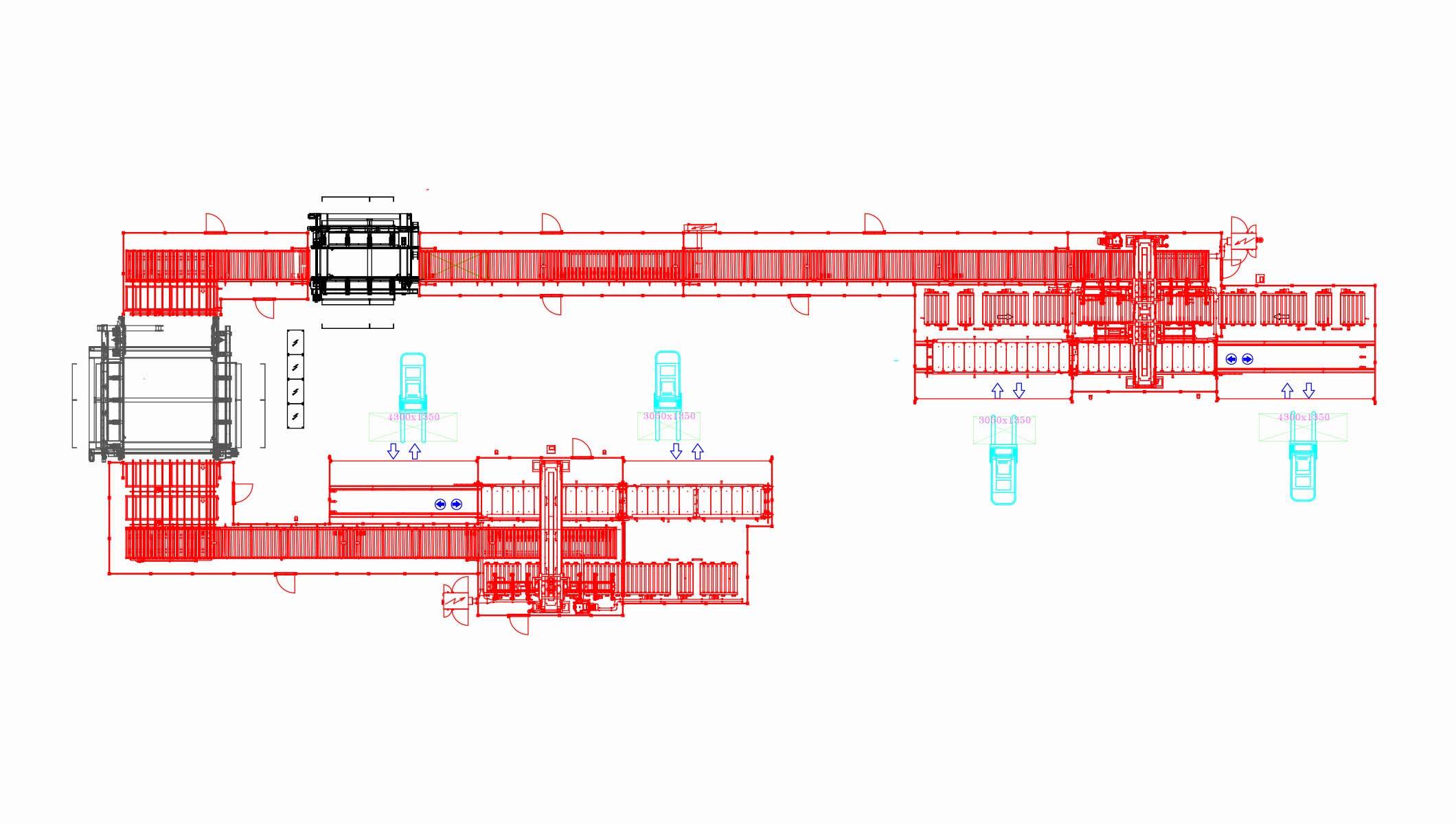

Complete squaring line for fiber-cement panels.

Highlights

  • High flexibility: special loading with double gripping unit for picking and handling panels and inter-leaver panels.
  • Perfect suction thanks to special suction hoods specific for highly abrasive powders.
  • High reliability due to special protection devices against fiber-cement dust on the squaring machines.
  • High degree of automation: special double trolley at loading and unloading for the accumulation of inter-leaver panels and processed panels on pallets.
Features
Pieces size
Length  mm  1500 ÷ 4300
Width mm  450 ÷ 1300
Thickness mm 4,5 ÷ 25
Max weight kg 230
Operators  n. 2
Required space  m2 ~ 1369
Production
Fibercement panels
video
