System 9. Moulding, tenoning and profiling - Output 1600 pcs/shift

■ Automation systems   ■ Throughfeed moulders   ■ Tenoners, mortisers, double sided shaper   ■ Profiling machines and double-end tenoners

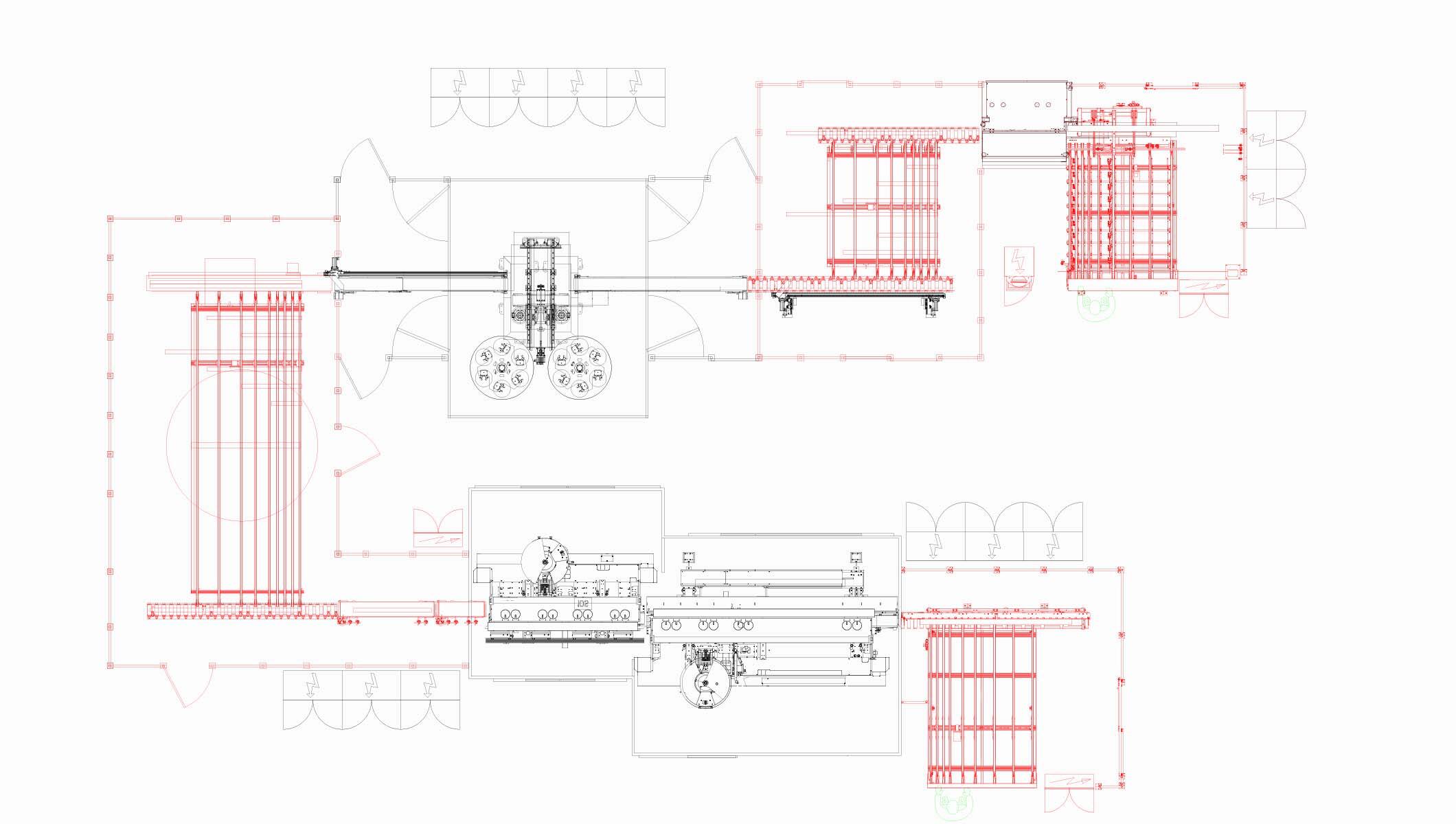

Integrated line for window-frames production.

Highlights

  • High production flexibility thanks to the automatic set-up units that minimise production changeover times.
  • High customisation of window and door frame dimensions thanks to a tenoning machine capable of working in batch 1.
  • High configurability of operations from the office thanks to customised IT integration between the line and MES/ERP of the customer.
  • High quality standards achieved through the use of solutions (Colibri) that avoid the typical chipping in solid wood processing.
Features
Pieces size:
Width  mm  40 ÷ 150
Thickness mm  40 ÷ 120
Length mm 280 (inside tenon) ÷ 3100 (total length)
Operators  n. 2
Required space m2 ~ 370
Production
Windows
