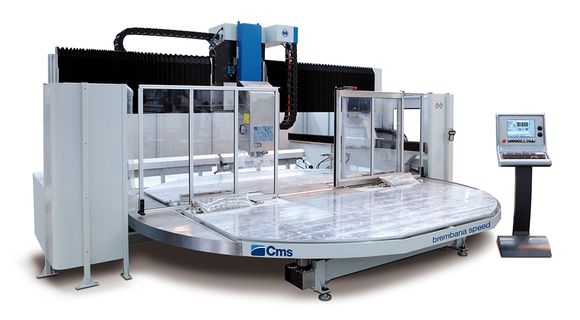

brembana speed
(512) 931-1962
3/4 interpolated axes monobloc machining center

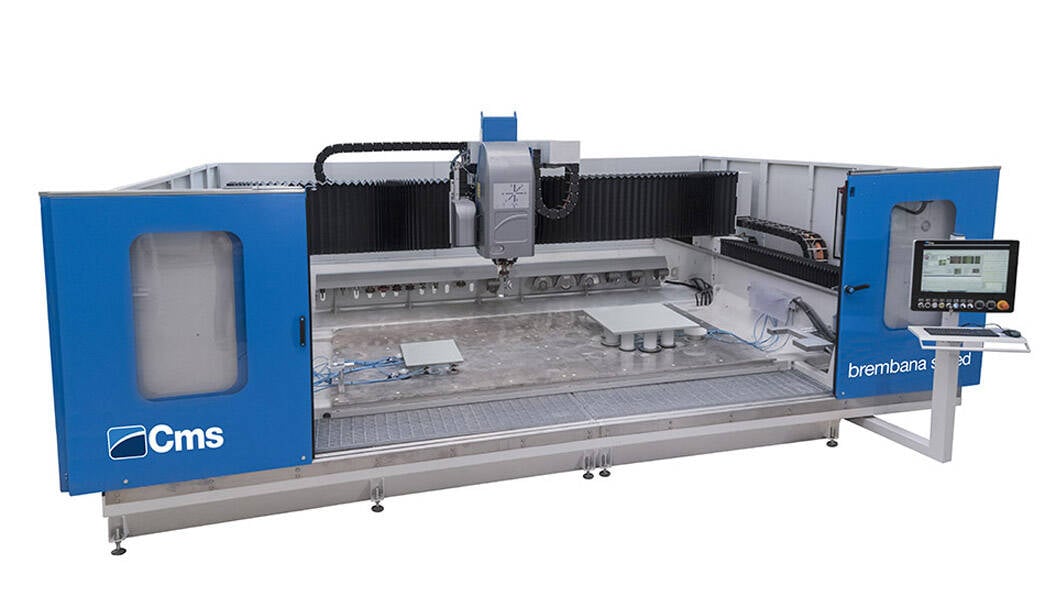

brembana speed is a Numerically Controlled Machining Center with three/four interpolated axes suitable for processing both slabs and blocks even with high thickness in marble, granite, composite stone, and ceramic.

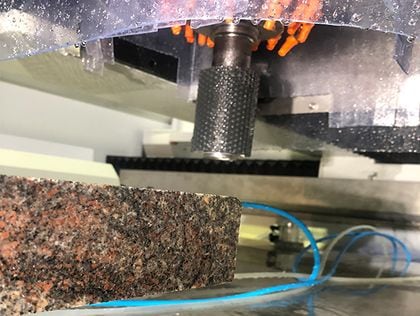

It can perform each type of raw and polished contouring, as well as milling, drilling, countersinking, bas relief, and writing.
This machine can be customized to the customer's needs, it is the winning solution for every fabshop.
brembana speed is also available with:

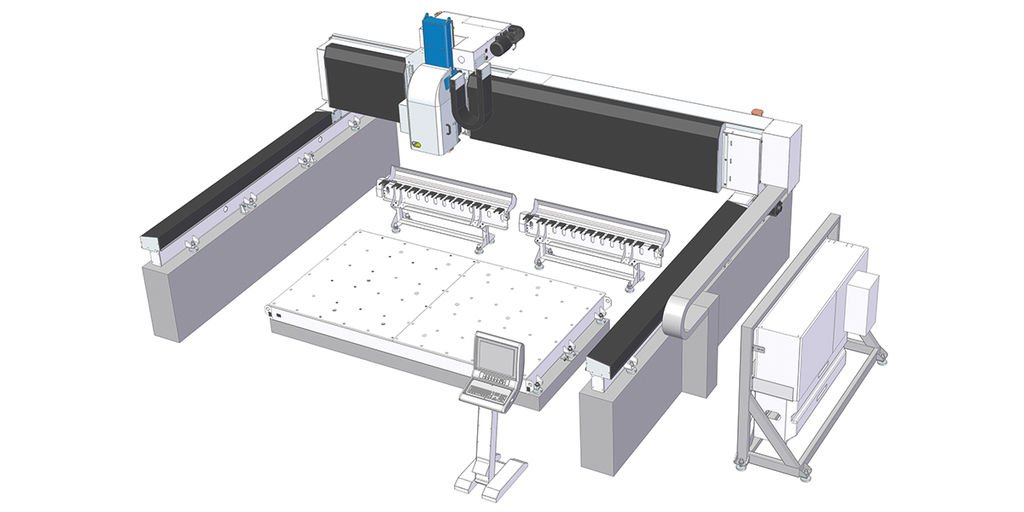

- masonry or steelwork separate-supports (Open Frame)

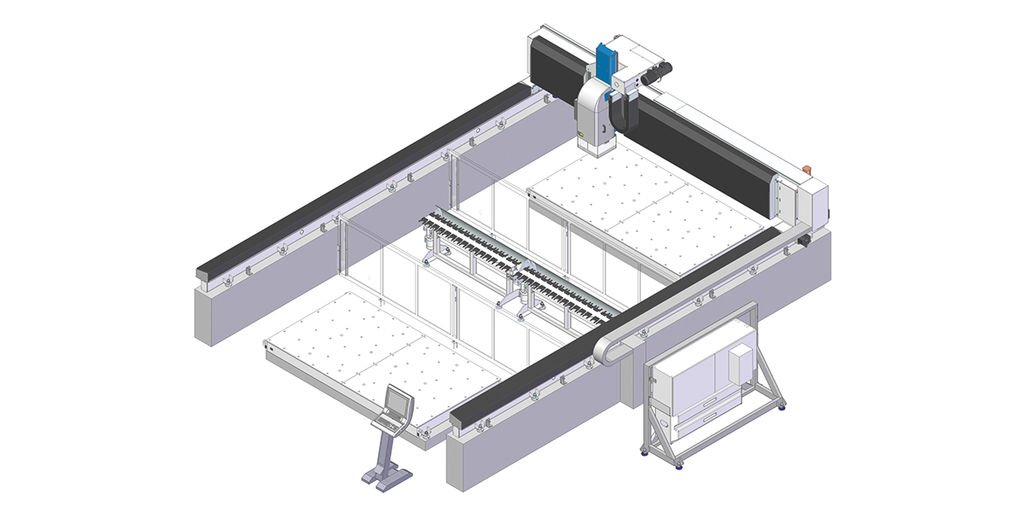

- double worktable and separate-supports (Twin Open Frame)
BEST-IN-CLASS POWER

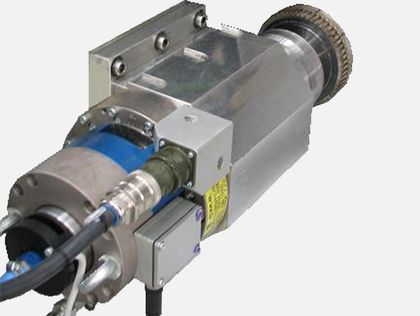

CMS-designed and manufactured liquid-cooled electrospindle with power up to 30 KW, providing optimal operating conditions and a saving of up to 21% on cycle times
UNRIVALLED MECHANICS

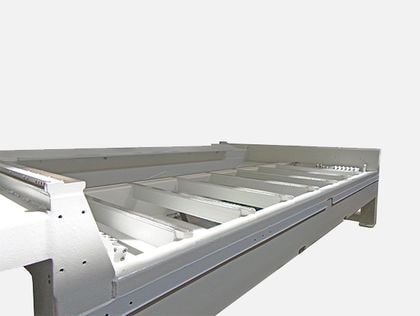

The sturdy structure of the machining center ensures optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time. The machine base fixed directly to the ground, without the need of building work, increases the stability and performance
AUTOMATIC PROCESS IMPROVEMENT
Dynamic feed adjustment and tool wear compensation to ensure best productivity and finish

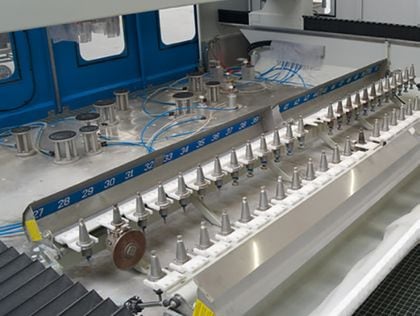

MAGAZINE WITHOUT LIMITS THANKS TO CMS SOLUTIONS
Up to 128 installable tools, in in-line or under-beam magazines, to cover all workshop needs without retooling
| X axes stroke | 2800 ÷ 3800 mm / 110 ÷ 149 in | |
| Y axes stroke | 1650 ÷ 7200 mm / 65 ÷ 283 in | |
| Z axes stoke | 350 ÷ 900 mm / 14 ÷ 35 in | |
| Rotating axis | C = 360° stepless | |
| No. stations tool changer | 12 ÷ 120 | |
| Electrospindle | ||
| Power | 13,5 KW / 18 Hp | 30 kW / 40 Hp |
| Revolution | 0÷15000 rpm | 0 ÷ 12000 rpm |
| Connection | ISO 40 | ISO 40 |
| Torque | 22 Nm at 6000 rpm | 39 Nm at 6000 rpm |
| Electrical Cabinet | integrated in the base | |
| Weight | 4300 ÷ 15000 kg | |
