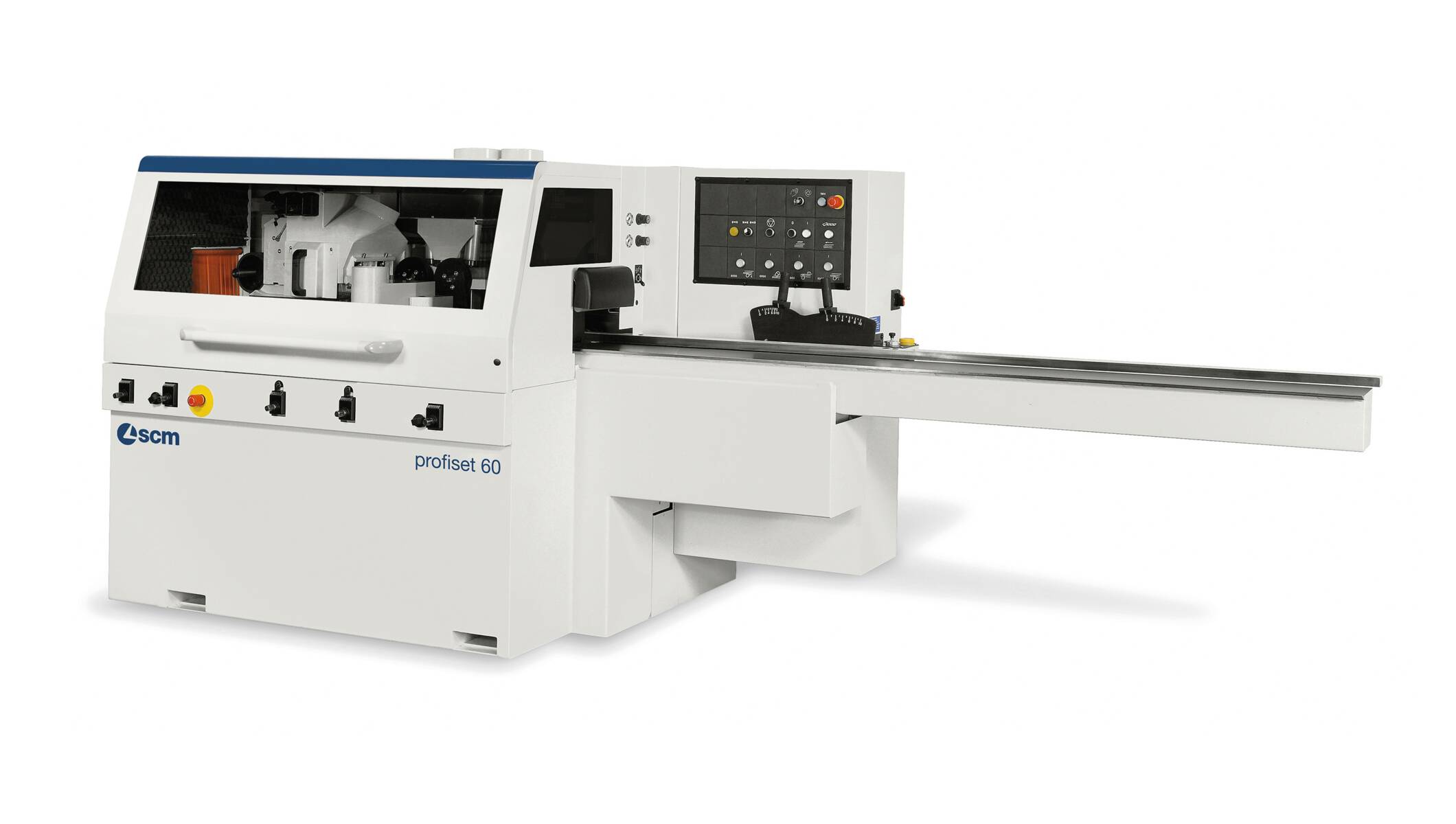

profiset 60
(512) 931-1962
profiset 60
Automatic planer and throughfeed moulder up to 6 spindles, available in four compositions with possibility to preset the profiling on the top horizontal spindle (option)
The optimum feeding: more productivity and improved finishing.
• Gears box drive and cardan joints
• Pneumatic working pressure on the feed rollers
• Inverter for the stepless speed adjustment from 5 to 25 m/min.
EASY PLUS: the operating advantage for easy assistance. Maximum reliability due to the function pushbuttons and easy-to-use with the electronic control of up to 5 axes with the 7” LCD display, 16:9 format. Integrated and fast control of all dedicated functions. These features translate into immediate improvements in productivity and guarantees the capability of the full potential of the machine.
“T-SET” rapid tool locking device: maximum degree of safety without any efforts. It ensures the locking/unlocking of tools simply through a gun with compressed air.

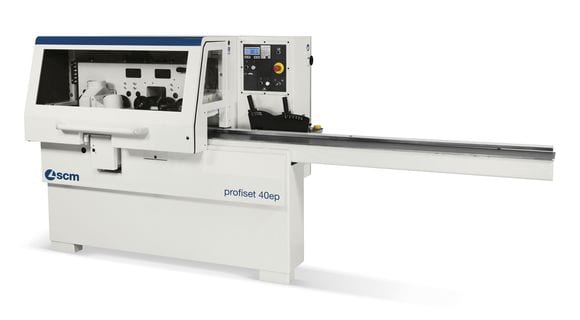

| profiset | 60 | 40 | |
| Min./max. working width (finished section) | mm | 25 (15 opt.)/230 | 23/180 |
| Min./max. working height (finished section) | mm | 6/120 | 6/105 |
| Feed speed | m/min | - | 6 - 12 |
| Feed speed (variable with inverter) | m/min | 5/25 | - |
| Spindles speed | rpm | 6000 | 6000 |
|
Axial adjustment of spindles with respect to the worktable |
mm | 40 | - |
