sergiani gsl-kl
(512) 931-1962

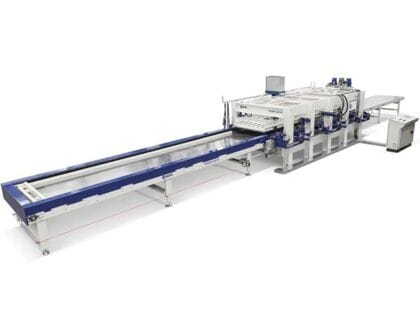

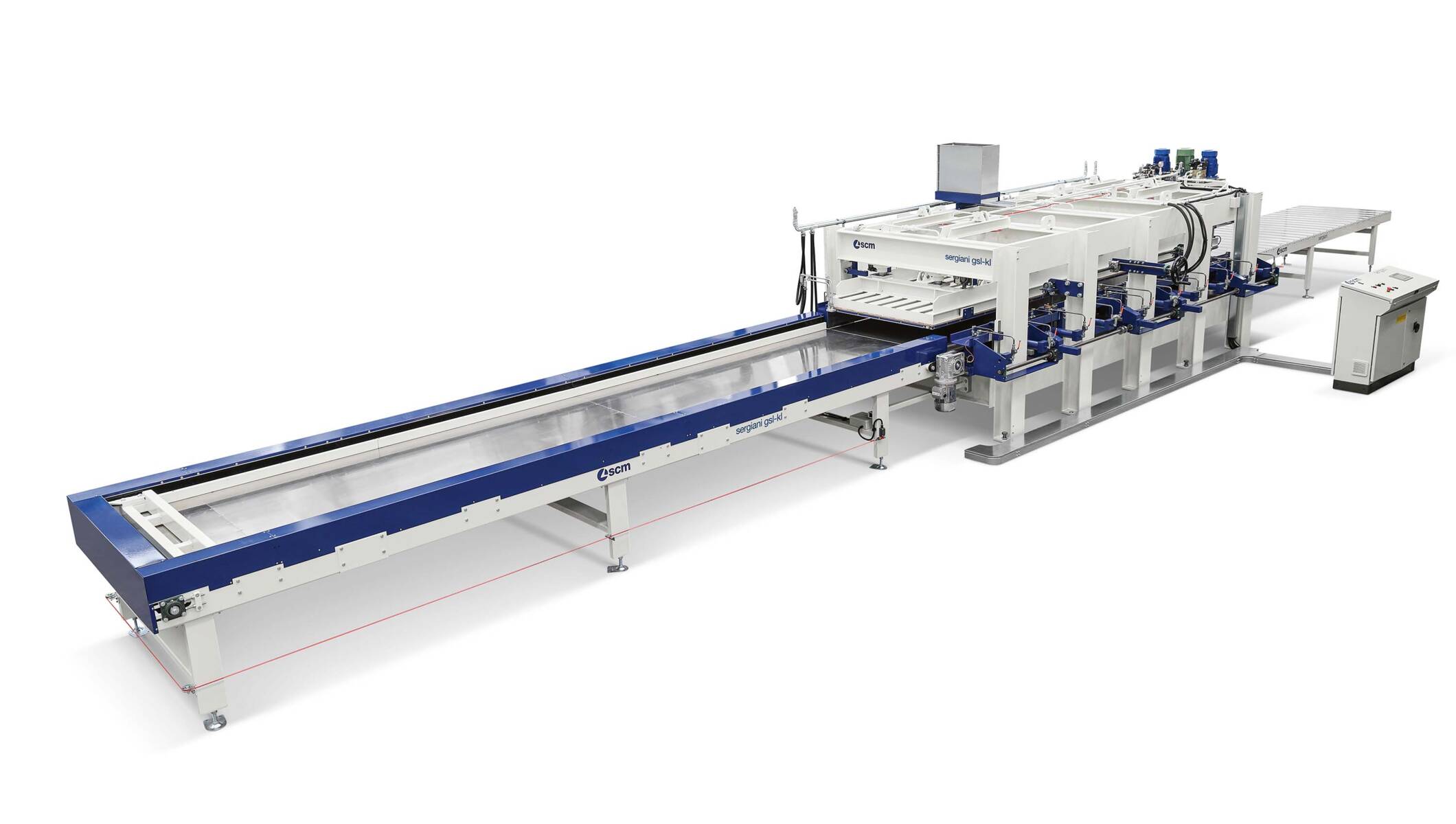

High productivity press for lamellar panels production, that are used in the construction of roofs, cantilever roofs, bridges and structural elements in general. Depending on the specific manufacturer's requirements, sergiani gsl-kl can be set with different composition and automatic panel loading/unloading systems.
Three available versions for processing panels with thicknesses of 40, 80 and 150 mm.
Top productivity

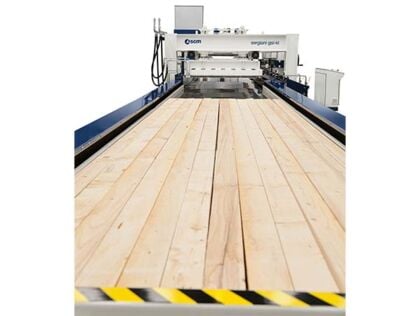

Automatic production of large sized panels and production cycle optimisation.

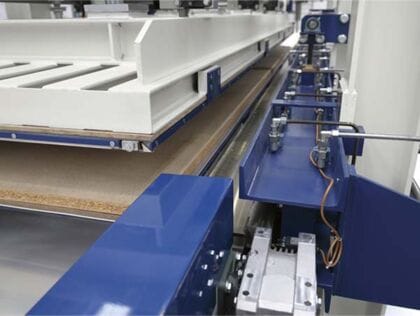

Optimum pressure distribution and gluing quality with the side thrust unit, sized according to the thickness of the panels to be processed.

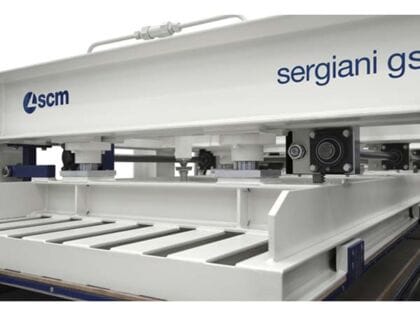

Perfect flatness of the finished product, guaranteed by the vertical thrust of press platen.
Possibility to choose customised automatic solutions according to the gluing system chosen and how the working cycle has to be carried out.
|
Model |
Platens dimension |
Vertical thrust (ton) |
Lateral thrust (ton) |
Cylinders stroke (mm) |
| Max. recommended working thickness: 40 mm | ||||
| gsl-kl 25-13 | 2500x1300 | 50 | 7,5 | 200 |
| gsl-kl 30-13 | 3000x1300 | 60 | 9 | 200 |
| gsl-kl 35-13 | 3500x1300 | 70 | 10,5 | 200 |
| gsl-kl 45-13 | 4500x1300 | 90 | 13,5 | 200 |
| gsl-kl 53-13 | 5300x1300 | 110 | 15 | 200 |
| Max. recommended working thickness: 80 mm | ||||
| gsl-kl 25-13 | 2500x1300 | 50 | 20 | 200 |
| gsl-kl 30-13 | 3000x1300 | 60 | 24 | 200 |
| gsl-kl 35-13 | 3500x1300 | 70 | 28 | 200 |
| gsl-kl 45-13 | 4500x1300 | 90 | 36 | 200 |
| gsl-kl 53-13 | 5300x1300 | 110 | 40 | 200 |
| Max. recommended working thickness: 150 mm | ||||
| gsl-kl 25-13 | 2500x1300 | 50 | 38 | 200 |
| gsl-kl 30-13 | 3000x1300 | 60 | 46 | 200 |
| gsl-kl 35-13 | 3500x1300 | 70 | 54 | 200 |
| gsl-kl 45-13 | 4500x1300 | 90 | 69 | 200 |
| gsl-kl 53-13 | 5300x1300 | 110 | 77 | 200 |
