workpiece pre-heater
(512) 931-1962

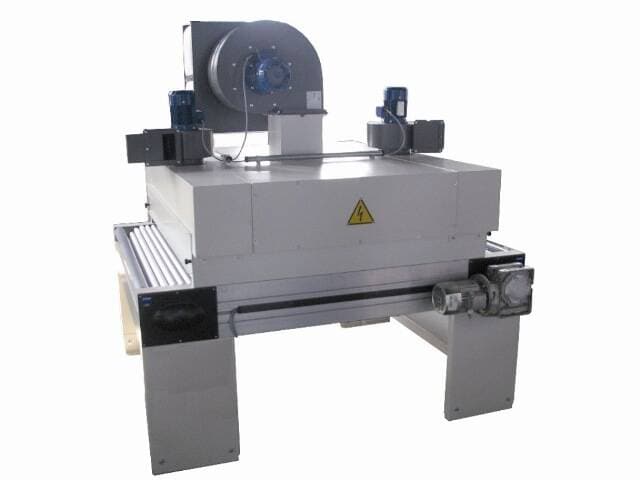

WORKPIECE PRE-HEATER UMI Pre-heating modular unit, used to reach a certain surface temperature of the work-pieces before lacquering, thus achieving a better lacquer flow. The hood uses the IR irradiation to efficiently transfer heat onto the substrate to be lacquered. The hood can be fitted up with three, six or nine lamps according to the required temperature differential and to the line feed speed. The hood is generally installed onto cross bar conveyors.
Efficient heat transfer onto the work-piece surface, thanks to the use of the most suitable IR lamps. - modular system , which can mount the desired number of lamps. - Switching on of the IR lmaps in group of three, so to modulate the power according to what needed. - possibility of stepless adjustment of the IR lamps (optional).
| Pre-heater UMI available mod. |
hood length |
no. of IR lamps |
| Pre-heater UMI 1000/13 3IR |
1000 mm. |
3 |
| Pre-heater UMI 1000/13 6IR |
1000 mm. |
6 |
| Pre-heater UMI 1500/13 9IR |
1500 mm. |
9 |
