Measuring System - Automatic Measuring - TigerStop SawGear

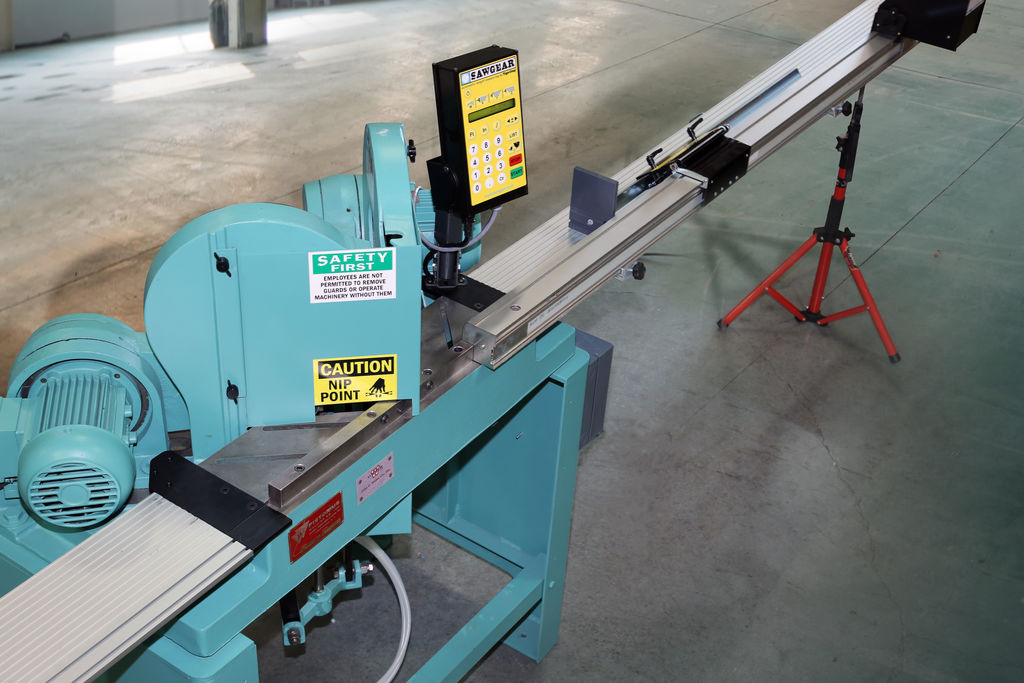

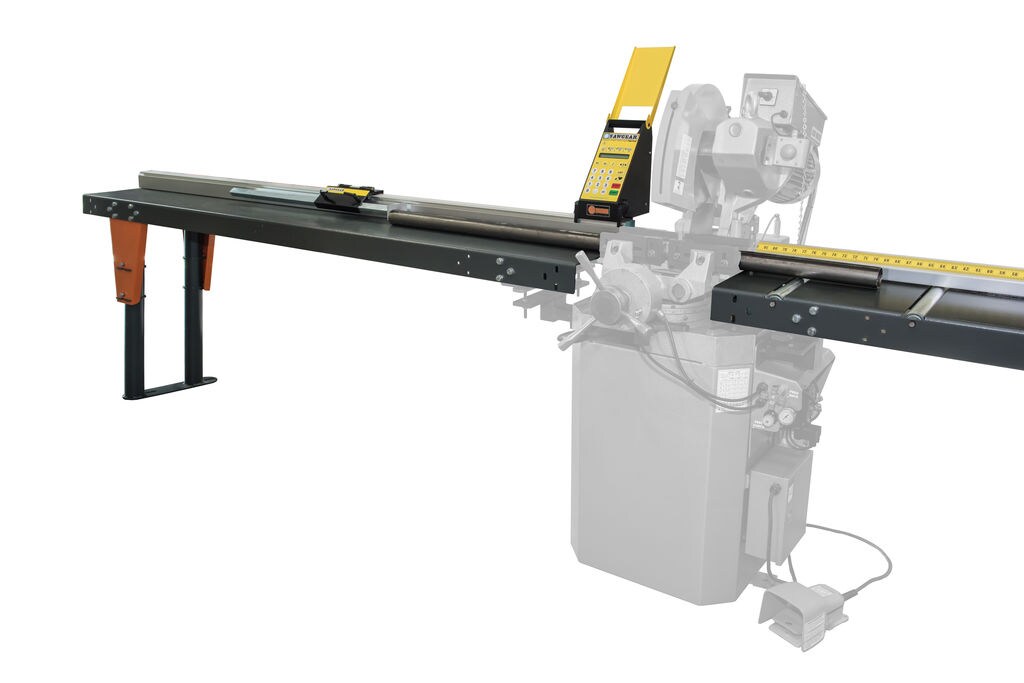

SawGear® is a simple and intuitive automated stop. No more using a tape measure or setting manual stops, which means you can produce more parts with increased accuracy. SawGear® easily attaches to your existing saw, drill, and punch.

Advantages

Simple and Intuitive Automation. SawGear® is a highly portable automated saw fence that removes the need to set and adjust manual fences for length positioning and complex miter/angle cutting. Using SawGear® in place of a manual fence or stop block allows the operator to increase accuracy and productivity, and decrease miscut parts and rework. A standard SawGear system can be mounted on any existing shop work bench. Adding SawGear’s portable tables to your order allows users to reap the benefits of automation on the jobsite.

Any operator is your best operator with SawGear®!



Station Set Up Made Easy
Setting up your machine to cut accurate parts is one of the most time consuming activities in your shop. SawGear® takes stop setup time down to 0 and keeps your operator making parts and making you money.



No More Rework
With SawGear® you can forget inaccurate parts and rework. You get it right the first time!



Ahead of Schedule
Not only do you get a better quality job, your guys get more done in the same hours… every day.



Highly Portable
SawGear is designed so you can throw it in your truck and take it to the jobsite with ease. Simply add SawGear’s portable infeed and outfeed tables to your order.



Simple to Use
SawGear® is designed for simplicity. Why spend weeks training operators when they can be cutting accuratly with SawGear® today?



SawGear® is designed as an automated stop. If you need to push, pull, or position parts, as well as download cut lists, optimize material, or use a touch screen tablet, you may want to consider a TigerStop® instead.

Technical data
  • Power Requirement - 110 VAC @ 10 Amps, 50/60 Hz Isolated Circuit (all SawGears are supplied with a suitable transformer to meet AU power requirements)

  • Drive Type - 32mm Steel Reinforced Belt

  • Repeatable Accuracy – 0.20 mm

  • Working Lengths available – 2.4m, 3.6m, 4.8m, and now available in 6m NEW!

  • Motor Type - DC Servo with optical encoder

  • Mounting brackets included
