Bridge saws - 5 axes bridge saws - brembana formax

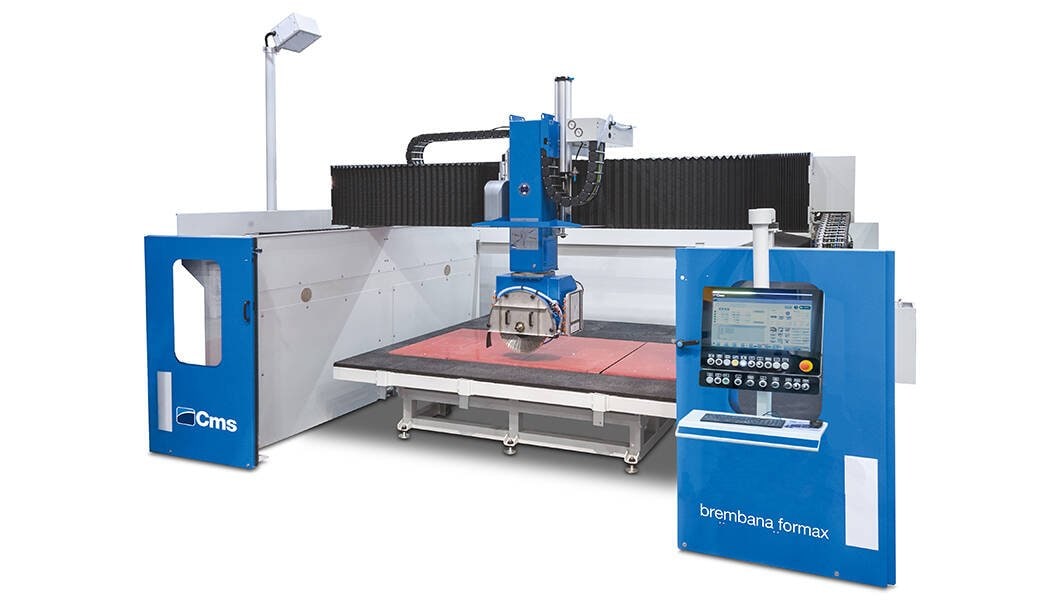

5-axis bridge saw

brembana formax is a Numerically Controlled 5 interpolated-axis bridge saw equipped with tilting head and fixed table. It can carry out any type of machining, cutting (straight or shaped, vertical or inclined), 3D profiling and milling operations, on marble, granite, composite stone and ceramic as well as stone blocks.
This machine can be customized to the customer's needs, it is the winning solution for every fabshop:

  • kitchen countertops
  • vanity tops
  • wall panels for interiors and exteriors
  • flooring
  • doorsteps, staircases, and thresholds
  • street furniture

brembana formax is also available with the following configurations:

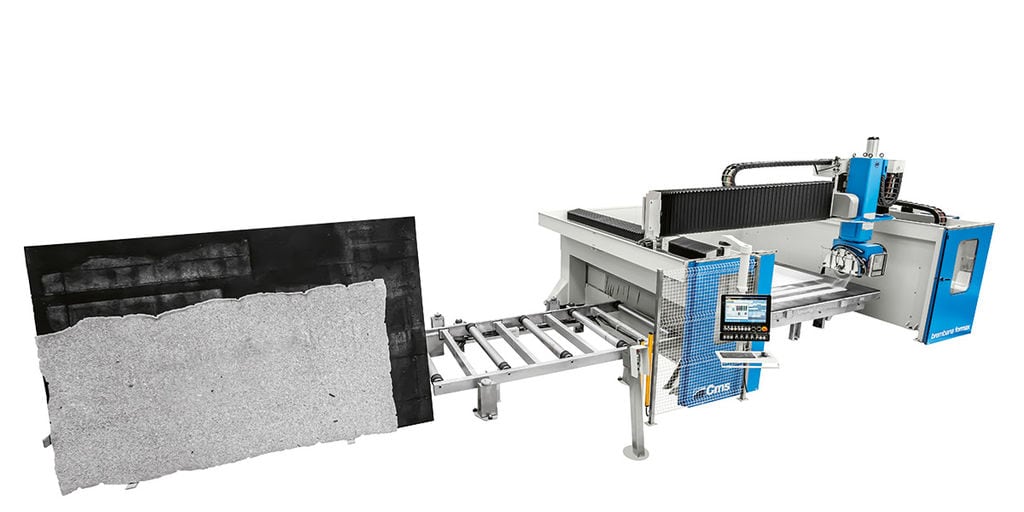

  • automatic exchange system of the workbenches (DUAL)

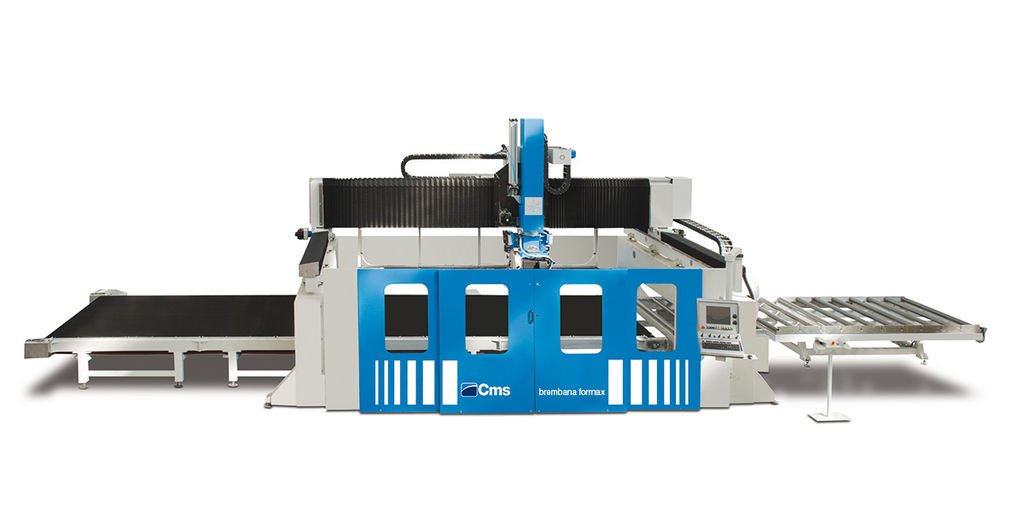

  • cutting line equipped with a belt working table (BT)

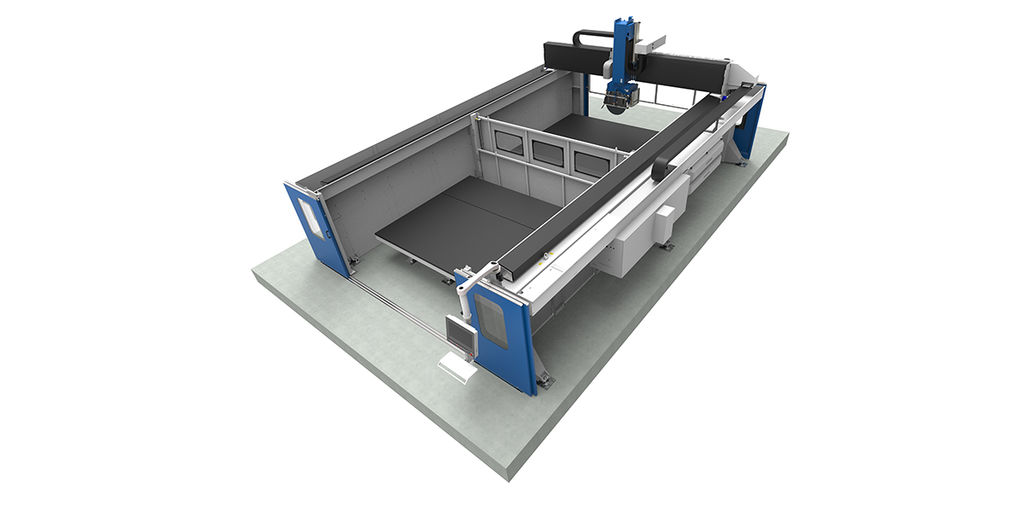

  • pendular machining

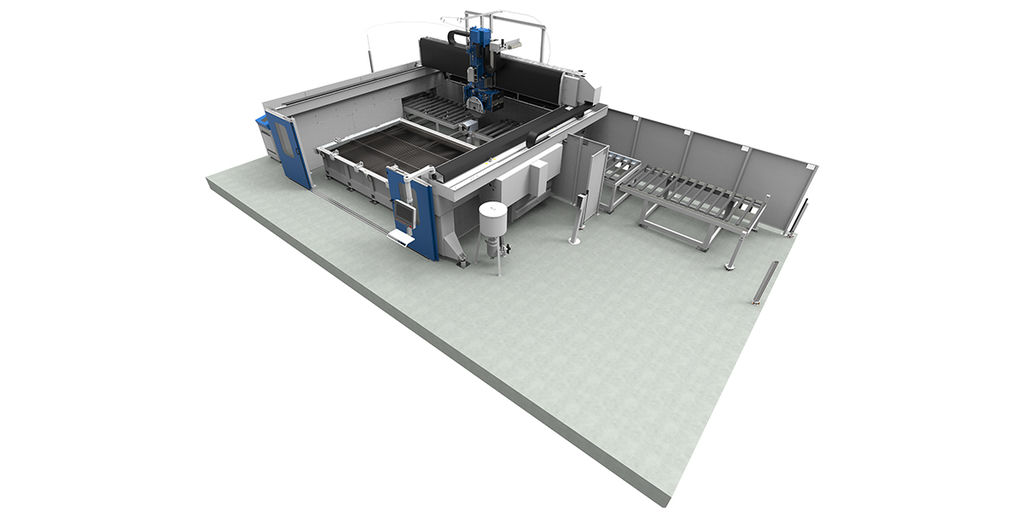

  • with an automatic unloading system of the pieces
Advantages

UNRIVALLED MECHANICS

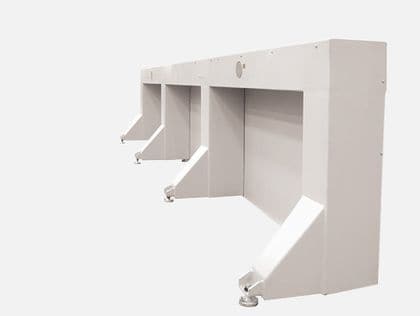

Open frame version, to install on concrete or carpentry shoulders guaranteeing stability and rigidity to accomplish the most difficult processing and to ensure long longevity.

MOTION ACCURACY

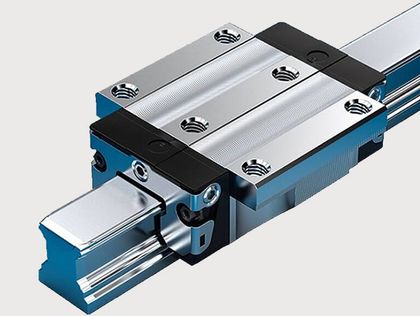

As a guarantee of quality all movements are powered by brushless motors coupled with a precision reduction gear and transmitted through a rectified and tempered guides and ball bearings.

LIMITLESS TECHNOLOGY

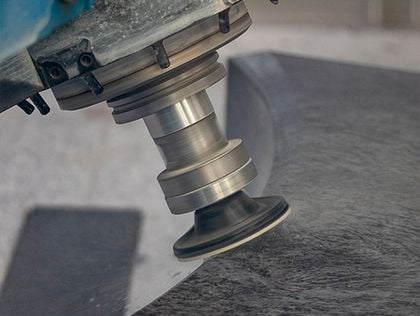

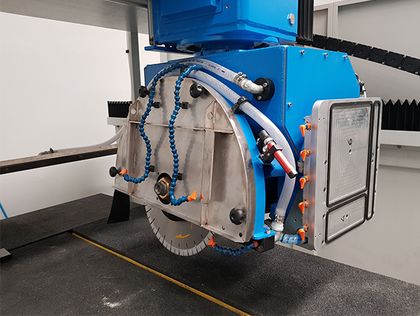

The machine can be equipped with a powerful ISO 50 electrospindle which, together with the 5 interpolated axes, transform the machine into a modern and complete 5-axis machining center.

+33% PRODUCTIVITY WITHOUT MANUAL MOVEMENTS

Thanks to the vacuum manipulator, it is possible to automatically move the cut pieces to optimize the slab cutting and reduce waste processing.

Technical data
X axis stroke 3800 mm / 150 in
Y axis stroke 2550 ÷ 7200 mm / 100 ÷ 283 in*
Z axis stroke 700 mm / 27 in
Disk diameter 350 ÷ 725 mm (optional 825 mm) / 14 ÷ 28 in (optional 32 in)
Motor 18,5 kW / 25 HP   -    25,5 kW / 34 HP
Motor revolution 0÷5000 rpm (optional 0÷6000 rpm)
Electrospindle (optional) 13 kW / 18 HP - 0÷8000 rpm - ISO 50
Maximum working thickness (with 90° disk Ø 625 mm) 200 mm / 8 in
Maximum working thickness (with 45° disk Ø 625 mm) 130 mm / 5 in
Head revolution (4th axis) ± 270° (540°)
Head inclination (5th axis) +8° -90°
Workbench dimensions 3600x2500 mm / 142x98 in*
Minimum space required for installation 6560x4680x3490 mm / 258x184x137 in

* Other dimensions available on request
