me 40

(512) 931-1962
Joinery machines - Edge Banders - me 40
Photos may include optional equipment.

High productivity edge bander with high quality performance.
me 40, further enhanced compared to the previous version, with the new rounding unit that allows to obtain high quality finished products, without further processing, allowing a considerable saving of time and increasing ease of processing. It is confirmed as the most accessorizable machine in its technological range, with an excellent quality / price ratio. This edgebander increases productivity with the feed track of the panel brought to a speed of 9 m/min and it guarantees high quality standards in processing thanks to the possibility of working with polyurethane glue, perform grooves, all being extremely easy to use.

Advantages

High productivity
9 m/min panel feed speed with track movement for an increased productivity. Monitoring of the panel position by encoder for a total work cycle control.

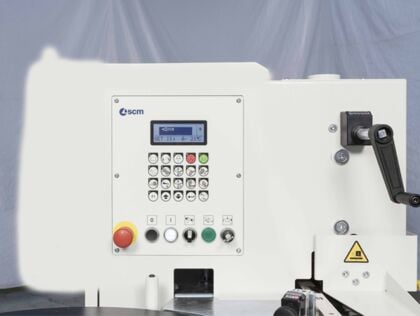

EASE-OF-USE PLC control panel
Optimal managing of the machine thanks to the 4” graphic display with large and bright characters, keyboard with LED “soft touch” keys, adjustment and indication of the temperature for the glue pot.

Impeccable finish
New rounding unit with rigid structure for a unique quality of work in its segment. The particularly affordable price distinguishes it as the most competitive edge bander with round on the market!

Brillant idea
The end-cutting unit with "Radius" allows you to make a radius on the corners of the edged panel without the need of the operator to have to finish by hand at a later stage: brillant idea to a finished product of high quality.

Technical data
me 40
Work table dimensions mm 3465 x 710
Min. ÷ max. thickness of rolled edges mm 0,4 ÷ 3
Max. thickness of edges in strips mm 5
Min. ÷ max. panel height mm 8 ÷ 50
Min. panel length/width mm 190/110
Feed speed m/min 9
