OMAL HBD 1300 1H
(512) 931-1962

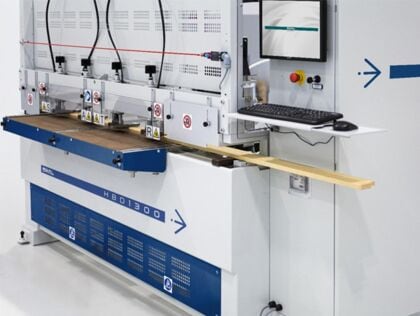

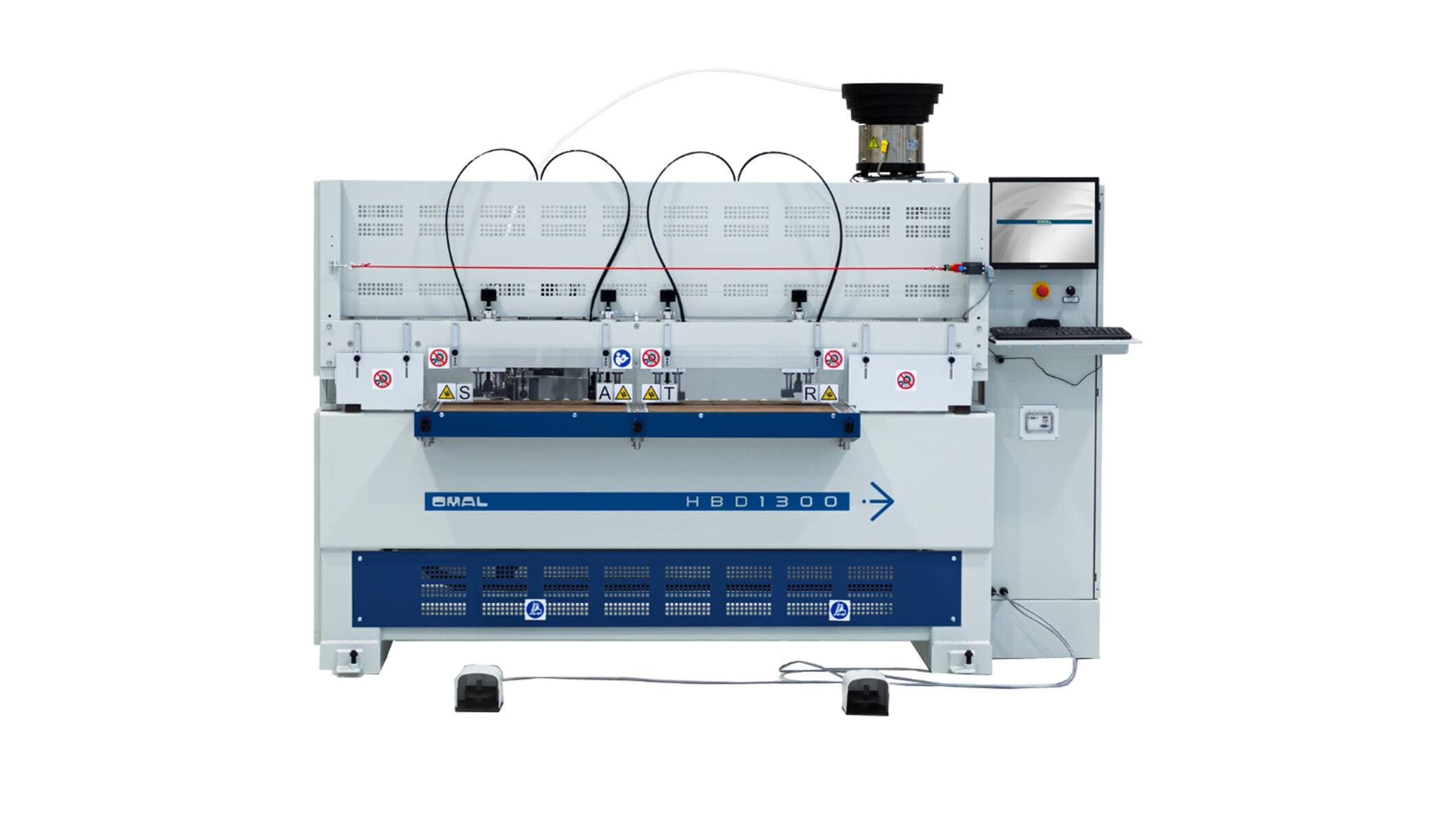

The HBD 1300 1H is an Open Frame CNC machine to drill, glue and insert dowels with a 1300mm (51”) working field. The center and side fences are retractable in order to process up to an 8’ length piece in two cycles. With the OMAL “Sure Shot” revolver system the cycle time of drill, glue, and dowel insertion is approximately ONE second when holes are on 32 mm intervals. The OMAL revolver system guarantees glue and a dowel is inserted every time!
The OMAL Laser System: The laser system is able to automatically measure the part, populate the program list for the part’s width and calculate all dowel locations for the part. With the Auto-start Sensor option, the HBD can run parts in any sequence without calling up the program and the machine senses the panel therefore, there is no need to push the start button.

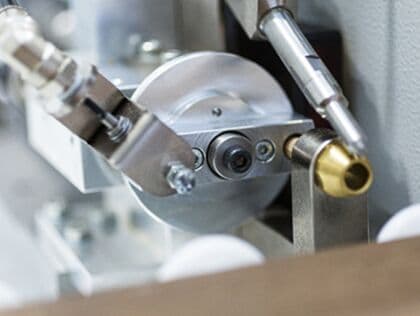

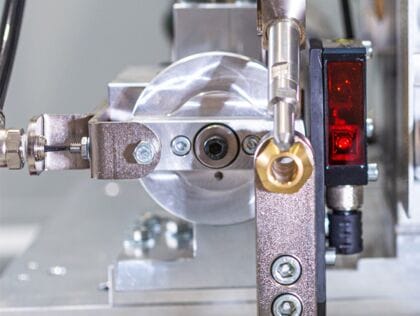

The OMAL Sure Shot System: The dowel insertion revolver holds a dowel while a second dowel is inserted, plus via fiber optic sensor, verifies the next dowel is present to prevent misfeeds. The OMAL “SURE SHOT ” revolver system guarantees a dowel is inserted every time!

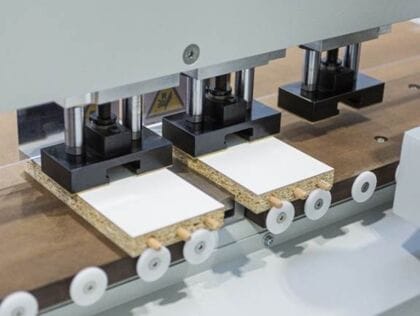

Large Robust Clamps: Four clamps are standard on the machine. The double clamps will hold panels either vertically or horizontally for edge or face processing on the HBD 1300 1H. If the machine is equipped with top drills, vertical part clamping is not possible.
Retractable Center and Side Fences: The selection of the loading zone (left, left center, right center, or right) is executed by CNC and automatic, based on the size if using bar coding. The center reference is excludable on the 1300 (50” work table). This means that you can process up to a 8’ panel using alternate referencing on the 1300 or 10’ using the 1550 frame!
| Width “X” | 1300 mm (51”) |
| Depth “Y” | 40 mm (1.57”) |
| Vertical “Z” | 40 mm (1.57”) |
| Voltage | 460V (220V)/60hz/3~ |
| Net weight | ~1200 kg (~2650 lbs) |
