CNC Machining Centers - CNC Nesting Machining Centers for routing and drilling - morbidelli n
Photos may include optional equipment.

Machining center designed and engineered for woodworking.
Thanks to the unique design and PRO-SPACE safety systems directly integrated onto the machine, a reduced floor space is required and is accessible from all sides to place panels or small components on the work table.

Advantages

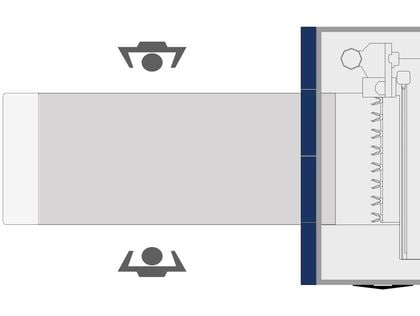

MINIMUM OVERALL DIMENSIONS AND MAXIMUM FLEXIBILITY: “PRO-SPACE” PROTECTIONS
Loading zone completely free to reduce the space occupied to the minimum. The absence of perimeter protections facilitates the work table access on all the sides of the machine.

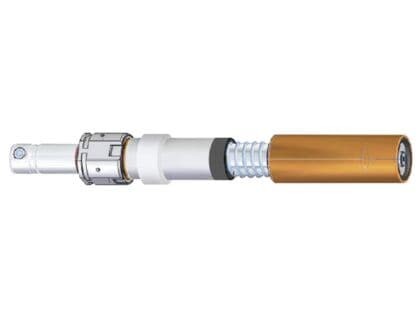

THE PERFECT DRILLING:
RO.AX SPINDLE

Zero play during machining with the new RO.AX technology (Rotoaxial spindle technology), the most efficient spindle on the market with rotation speeds up to 8000 rpm. The sturdiness of drilling heads is proven by the reduced maintenance costs: five times less than that imposed by the majority of other machine manufacturers.

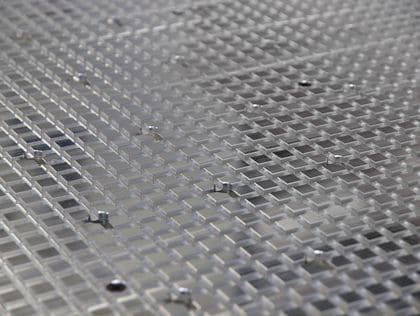

DESIGNED FOR EFFICIENCY AND SAVING: “H.E.” (High Efficiency) WORK TABLE
Sturdy and practical work table, resistant over time thanks to its laminate aluminum structure.
Easy and quick setting with the magnetic locking system of the vacuum: in a few seconds the vacuum is activated only in the positioning area of the piece to be machined.

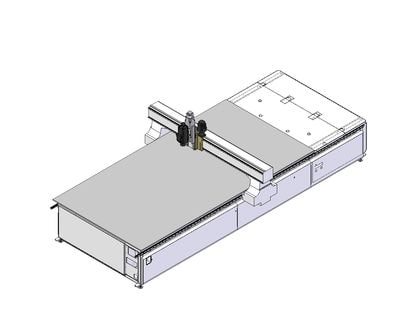

TOTAL ABSENCE OF VIBRATIONS:
MOBILE GANTRY STRUCTURE

Performance without comparison with the mobile gantry structure that allows for high machining speeds whilst guaranteeing the best end products quality.

Technical data
    n100/n50 12 n100/n50 15 n100 18 n100 22-31 n100 22-43
Axes
Vectorial speed X-Y axes m/min 35 35 35 35 35
Z axis stroke mm 250 250 250 250 250
Z axis panel passage mm 150 150 150 150 150
Routing unit
Motor power (max.) kW (hp) 15 (21) / 9,5 (13) 15 (21) / 9,5 (13) 15 (21) 15 (21) 15 (21)
Rotation speed (max.) rpm 24000 24000 24000 24000 24000
Available tools on tool changer (max.) places 12 / 8 15 / 10 17 20 20
Drilling unit
Independent vertical spindles (max.) n. 12 12 12 12 12
Independent horizontal spindles (max.) n. 6 6 6 6 6
Rotation speed (max.) rpm 8000 8000 8000 8000 8000
