Systems for timber construction - CNC Machining Centres for timber construction - area xl
Photos may include optional equipment.

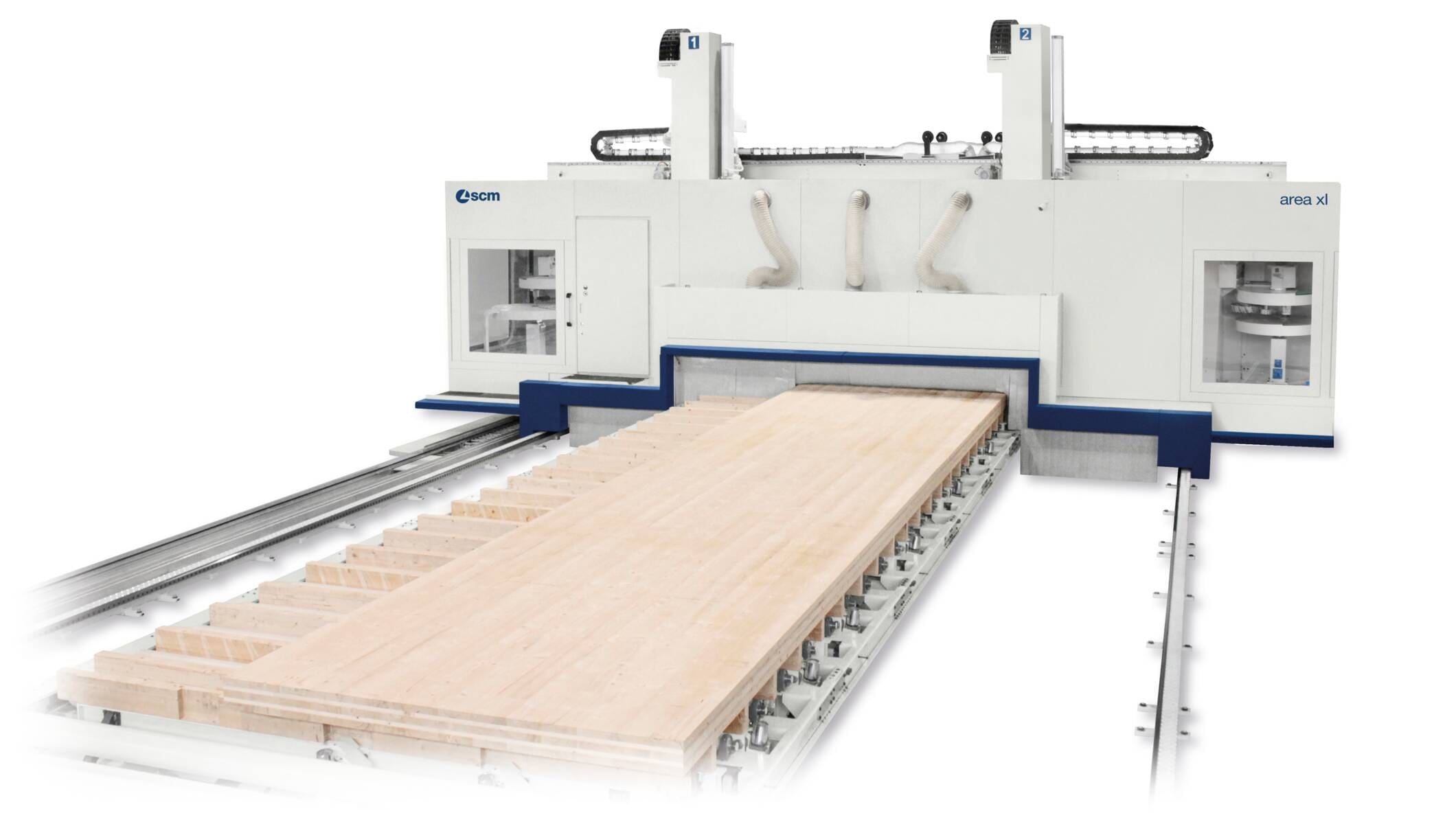

area xl is the 5-axis CNC machining centre, with mobile gantry structure, for the industrial production of large format X-lam/CLT panels for wall, ceiling and roof elements. It allows fully automatic handling and processing of elements up to 400 mm thick and 3600 mm wide.

Advantages

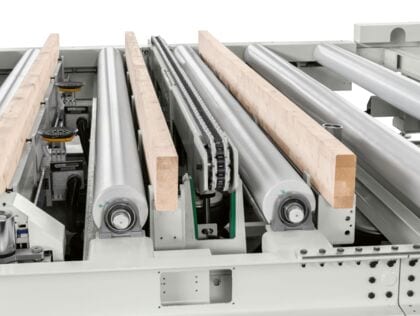

HIGH PRODUCTIVITY
It has been designed and built to be integrated into automatic production lines, where the automation of the process in the workpiece handling and referencing phases is extremely important. The motorised worktable can automatically manage elements with a weight of up to 12.7 tonnes.

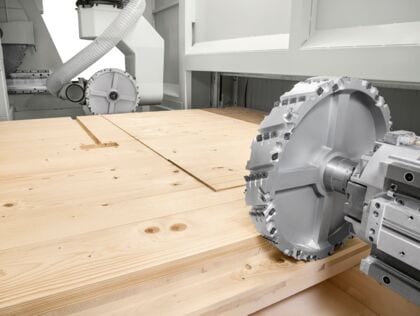

POWER
It can be equipped with one or two machining head units featured with very high performances in terms of torque and power, so as heavy duty stock removal is easy even with very heavy tools. The high rigidity of the structure facilitates the processing of very tough woods.

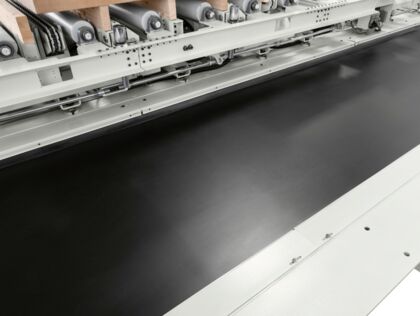

ONGOING CLEANLINESS
The work area is always clean thanks to automatic cleaning systems located inside the cabin, underneath and at the sides of the worktable. No shavings even on the surface of processed elements.

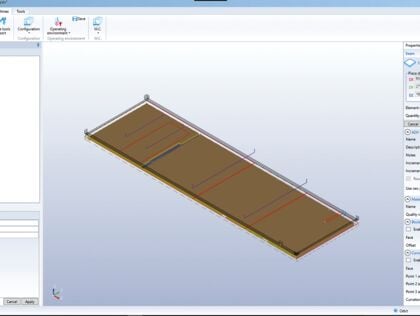

MAESTRO BEAM&WALL
The SCM software that makes the programming and use of the machine simple and intuitive. Interpreting projects with BTL format, standard in the sector, it allows to create the program in a few steps. It also has a function for 2D nesting to be carried out automatically. Thanks to the 3D simulator the programs can be tested before execution on the machine, in order to eliminate collision risks and calculate real costs/time.

Technical data
Element dimensions at infeed
Length min/max mm 2100 – 16000
Width min/max mm 500 - 3600
Thickness min/max mm 20 - 400
Element dimensions at outfeed
Length min/max mm 1100 - 16000
Width min/max mm 500 - 3600
Thickness min/max mm 20 - 400
Machining head units
Power max (S1) kW 63
Rotation speed max rpm 12000
Torque max (S1) Nm 200
Tool connection - HSK 100 A
Tool stores
Tools stores available Tot. N° 6
Tools available Tot. N° 60
Sawblades diameter mm 1150 - 800



Software
Case History
Holzbau Sud | Wood lies at the heart of every project
Read more
Jagram-Pro | Modern wooden constructions meet SCM innovative technology
Read more
FHS Holzbau: so many successes with SCM!
Read more
The choices made by Moser Holzbau
Read more
Marlegno | The digital transformation of timber houses
Read more
Media

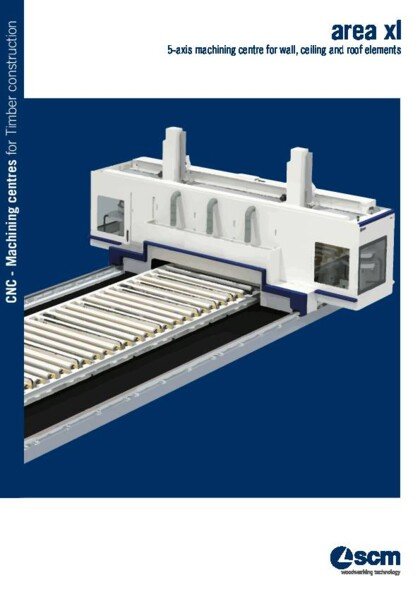

Documentation
