stefani s
(512) 931-1962
stefani s is the single-sided edgebanding machine designed for medium-and large-scale firms and leader in the market, is characterized by its precise machining operations, reliability and efficiency. Suitable for machining edges in plastic material, both traditional and modern, wood and laminate strips, even aluminium edges. It offers a complete range of machining operations for diversified industrial production at reduced costs.
MODULARITY
stefani s can be “tailor-made” for the individual customer, according to his own qualitative and performance requirements, for both the traditional machining of straight panels and soft-forming machining.
INTEGRATION
stefani s can be used in edgebanding cells, with automations for the panel return to the operator, with devices for manual or semi-automatic panel insertion, and with devices for automatic panel loading. It can also be inserted in a line with other machines.

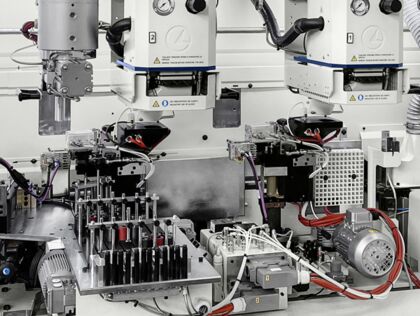

stefani s guarantees the highest quality thanks to the best technology available in every area of the machine. AirFusion+, SLIM LINE, SGP glue pot, ZERO LOCK, NESTING LOCK, are just some of the exclusive technologies to guarantee a finished product at the top.
|
Max working speed
|
m/min
|
25 (30 opt)
|
|
Coil edge thickness
|
mm
|
0.3-3
|
|
Pre-cut strip thickness
|
mm
|
0.4-1
|
|
Solid wood thickness
|
mm
|
25
|
|
Panel thickness
|
mm
|
10 – 60 (80 opt)
|
|
PANEL DIMENSIONS WITH COIL EDGE
|
|
|
|
Min/max panel length
|
mm
|
135 (125 opt)-3200
|
|
Min/max panel width
|
mm
|
95 (55 opt)-1200
|
|
Pneumatic system
|
MPa
|
6
|
|
Technology for edge application
|
|
EVA, PUR, EVA+PUR
AirFusion+
SLIM LINE
|
|

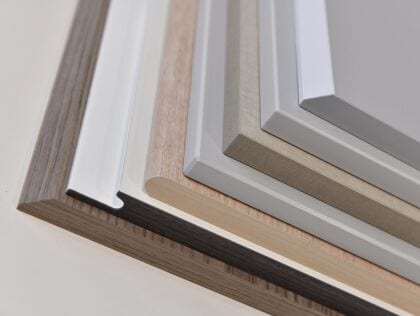

TYPE OF EDGE
|
EXAMPLE OF APPLICATION
|
MAX THICKNESS
|
|
Paper
|
Raw / prepainted
|
0,6 mm
|
|
Plastic in coil
|
ABS, PVC, PP (with/without film)
PMMA (polished or rough to polish/smooth)
|
3 mm
|
|
Alluminium
|
Shine/ Satin
|
3 mm
|
|
Pre-cut strips
|
Veneer, PC, Unicolor
|
1 mm
|
|
Solid wood
|
Raw / polished / drawn
|
25 mm
|
