morbidelli pwx500
(512) 931-1962

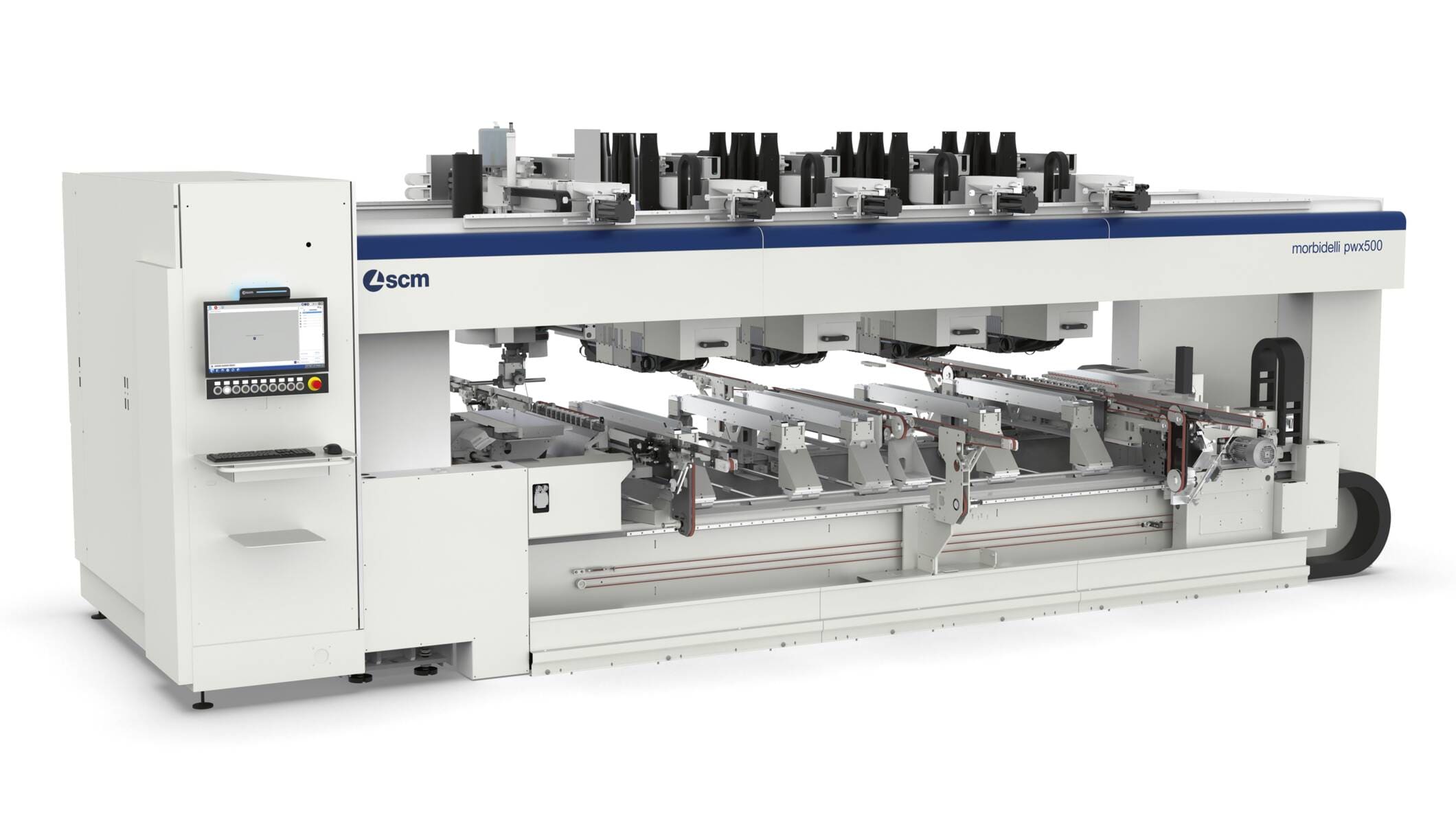

Automatic drilling machine ideal for flexible, fast and high quality production, even when processing small batches with different quantities and characteristics. It is designed to solve today's diverse and complex production challenges while guaranteeing the highest production rates.

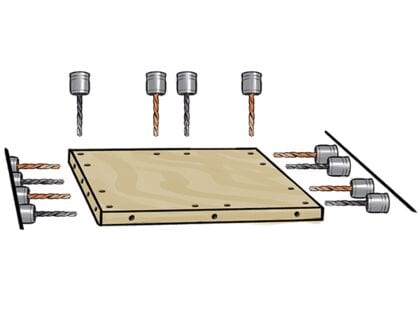

HIGH FLEXIBILITY
thanks to the optimisation of the upper drilling units to meet modern industry's need for batch variability.

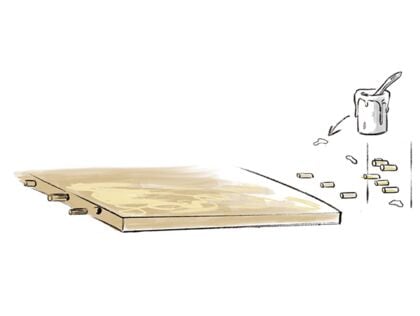

Possibility of carrying out additional machinings such as doweling, routing and grooving.

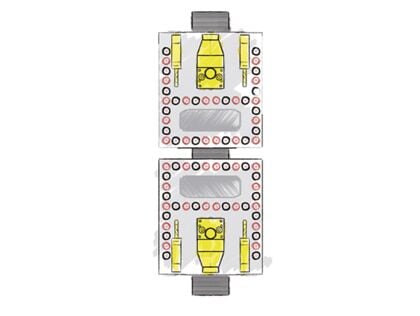

HIGH SPEED
with the new drilling unit providing the best spindle arrangement and maximum productivity.

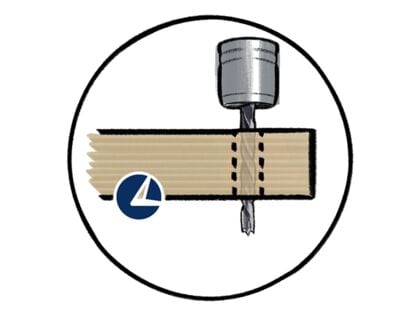

HIGH QUALITY
with the innovative RO.AX (Rotoaxial spindle technology), the highest-performance spindle on the market with controlled rotation speed from 3000 to 6000 rpm.
Extreme precision, low maintenance and preservation of lubrication characteristics; temperature stability at 65 degrees regardless of environmental and usage conditions, ensuring no wear and loss of efficiency after 1200 hours.
EASE OF USE AND MANAGEMENT
with the wide range of software in the Maestro Suite.
Optimised drilling heads' set-up with Maestro powerset to execute all programs in the shortest possible time.
| Min. / max. panel length | mm | 250 / 3000 |
| Min. / max. panel width (single positioning) | mm | 100 / 900 |
| Min. / max. panel width (double positioning) | mm | 100 / 1200 |
| Min. / max. drilled panel thickness | mm | 10 / 60 |
| Min. / max. panel with dowels thickness | mm | 12 / 60 |
| Max panel weight | kg | 50 |
| Vertical drilling heads (max.) | no. | 10 |
| Horizontal drilling heads (max.) | no. | 4 |
| Drilling rotation speed | rpm | 3.000 - 6.000 |
| Automatic work tables | no. | 5 (std) - 1 (opt) |
| Work table height | mm | 1070 |
| HSK 63 electrospindle with tool changer (opt.) | / | |
| Side dowelling unit (opt.) | / |
