e 20
(512) 931-1962
Edge banding with hot melt glueon edges in rolls and strips on shaped panels, simply essential and functional.

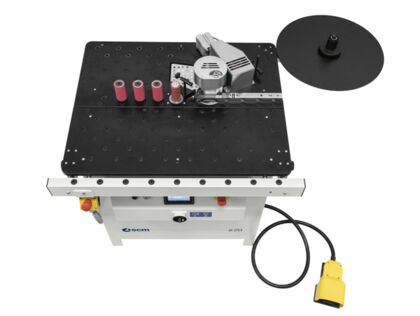

Designed to be economic, reliable and practical machine for the edge banding of straight and shaped panels.
Designed to be economic, reliable and practical machine for the edge banding of straight and shaped panels.

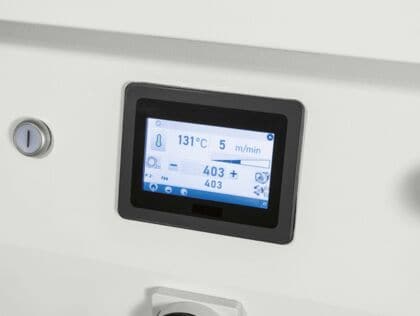

4,3" touch-screen electronic control.
Simple and intuitive, it enables an easy selection of all the main functions.
Powered pressure roller.
It facilitates the panel feeding during the machining.

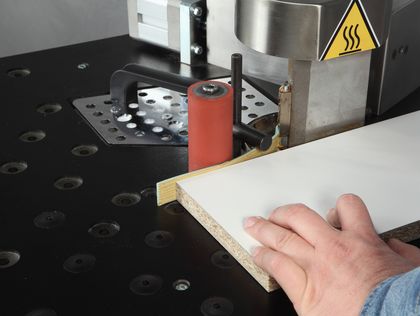

Anti-scratch phenolic multilayer worktable.
No surface damage to the work piece during machining thanks to the special worktable with modular holes complete with panel supports.
| e 20 | ||
| Min. ÷ max. edge thickness | mm | 0,4 ÷ 3 |
| Min. ÷ max. edge height | mm | 10 ÷ 84 |
| Min. ÷ max. panels height | mm | 8 ÷ 80 |
| Min. ÷ max. panels lenght/width | mm | 290/50 |
| Min. internal radius (concave), 0,4 mm thickness | mm | 25 |
| Min. external radius (convex), 0,4 mm thickness | mm | 5 |
| Feed speeds | m/min | 3 - 4 - 5 - 6 - 7 - 8 |
