minimax si x
(512) 931-1962

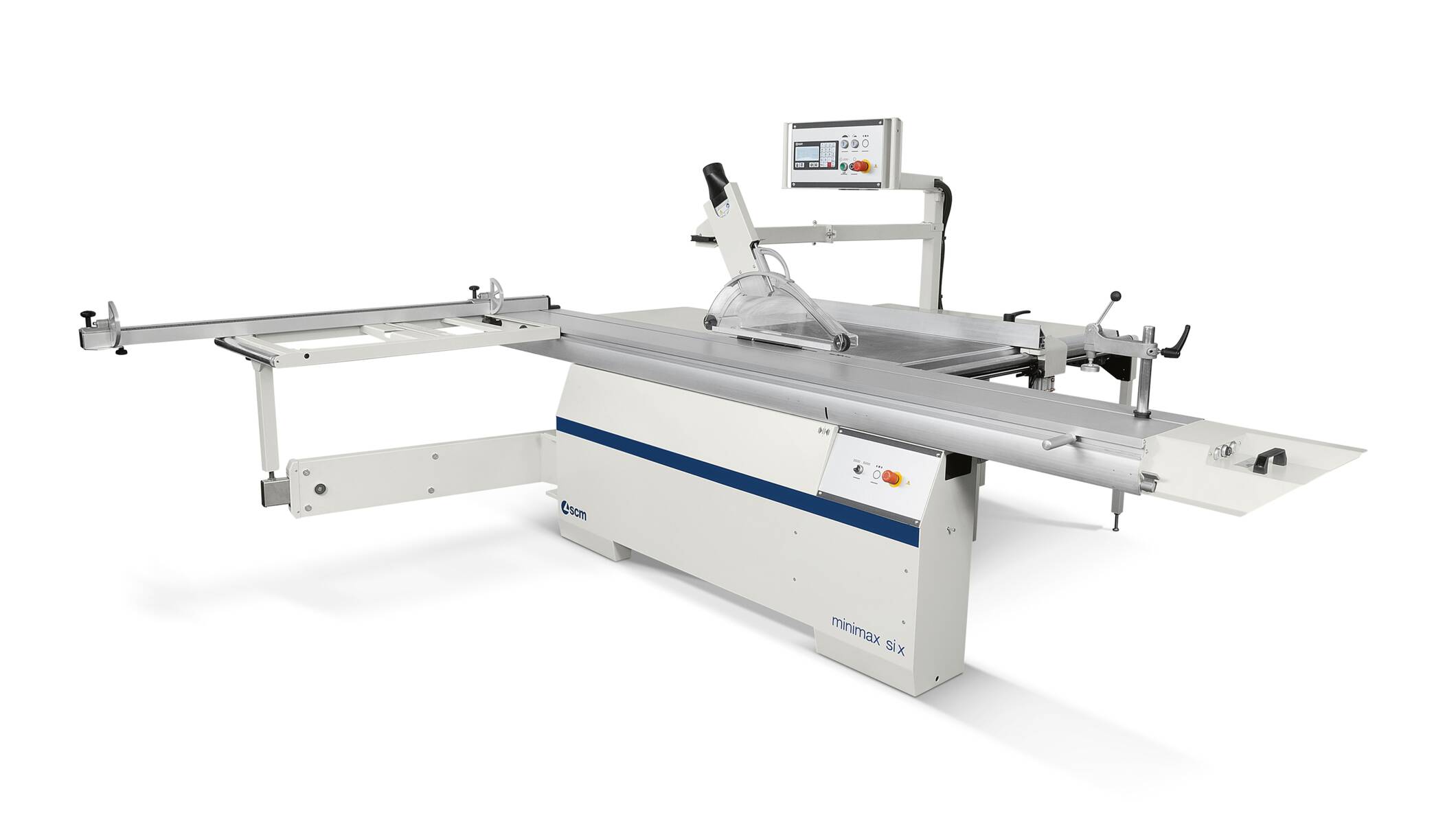

Circular saw with ±46° double tilting.

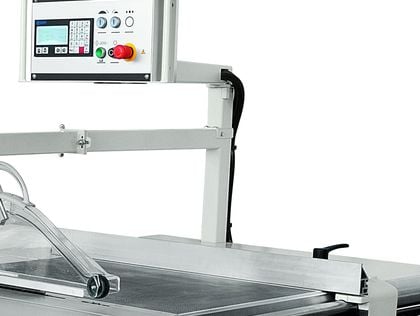

Finally available at everybody’s reach. With powered and programmed sawblade movement available as standard.
It allows simultaneous use of a 400mm saw blade and 160mm scoring blade both for 90° cutting and ±46° tilted cutting, guaranteeing the maximum cutting height on veneered panels and solid wood.
Circular saw with ±46° double tilting; now at everybody's reach.

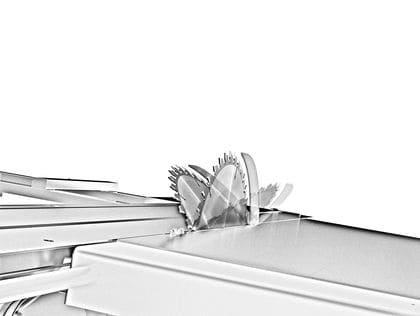

New saw unit with a stiff cast-iron structure which can accommodate a blade of 400 mm diameter with scoring blade mounted. It ensures a perfect and easy cutting of veneer panels and thick solid wood material with very high thickness both at 90° and tilted cuts at ±46°. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard.
Unrivalled cutting finishing

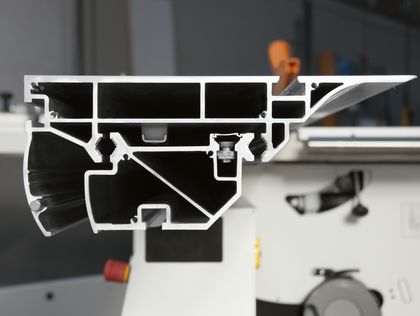

Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
| minimax si x | ||
| Max. sawblade diameter with scoring blade installed | mm | 400 |
| Max. sawblade projection from table at 90°/+45°/-45° | mm | 136/97/60 |
| Cutting width on parallel fence | mm | 1270 |
| Squaring stroke | mm | 2600÷3200 |
| Three-phase motors starting from | kW/Hz | 7 (8) / 50 (60) |
