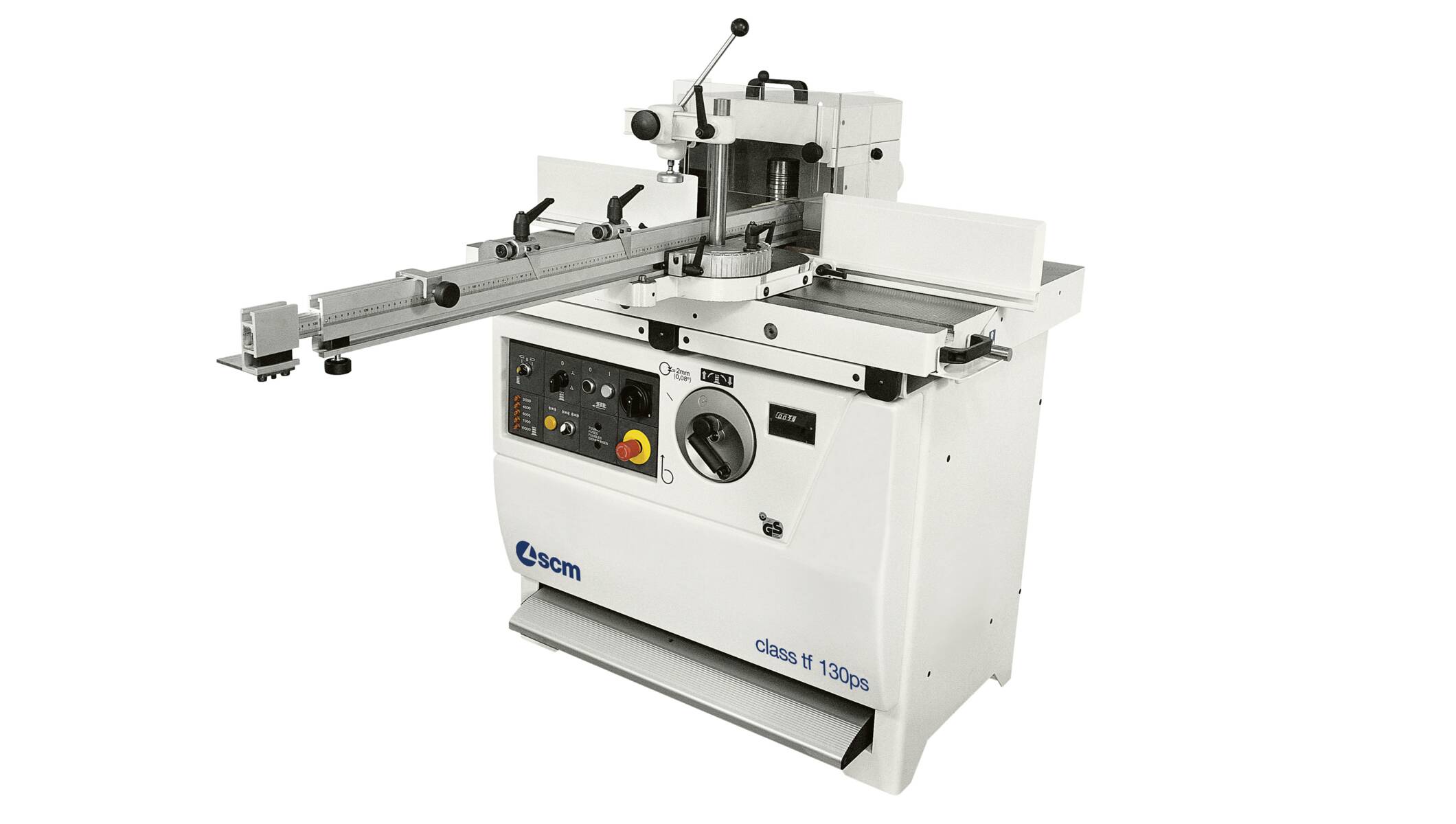

class tf 130ps
(512) 931-1962
The "flexible" par excellence. Designed to manage tenoning and moulding operations very easily.

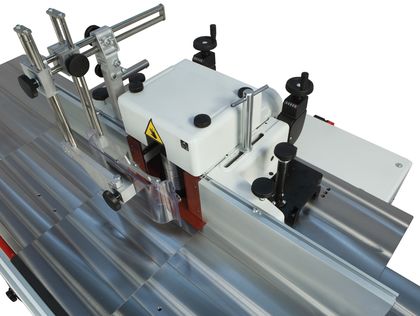

With the front sliding carriage integrated in the table, the table, the tilting telescopic fence and the protection hood with dedicated armguard, the operator can easily and safely carry out tenoning and profiling operations.

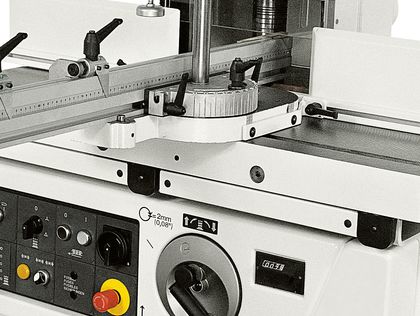

Set up precision and reliability. The operator easily adjusts every movement thanks to the handwheel with mechanical readout positioned on the machine front.

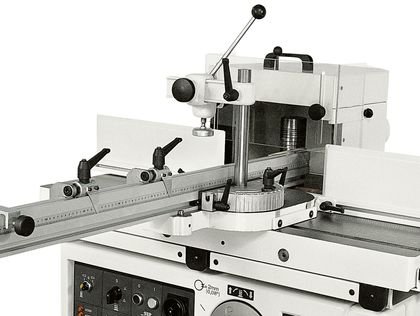

Spindle moulder fence with mechanical programming: maximum set up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.
| Class tf 130ps | ||
| Max. useful spindle length | mm / inches | 180 / 7 |
| Spindle speed | rpm | 3000/4500/6000/7000/10000 |
| Max. diameter of the profiling tool | mm / inches | 250 / 9.8 |
| Max. tool diameter retractable under the table at 90° | mm / inches | 320 / 12.6 |
| Max. diameter of the tenoning tool | mm / inches | 300 (350) 11.8/13.78 |
| Three-phase motor power | Hp | 11 |
| Max. squaring stroke of sliding table saw | mm / inches | 1000/39.25 |
