valtorta f1
(512) 931-1962

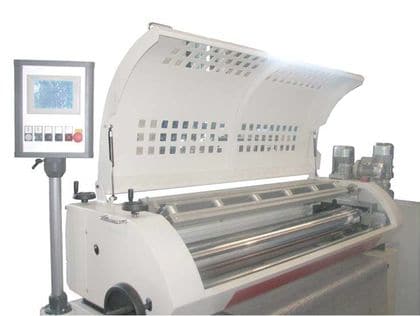

Thanks to Superfici’s vast experience in finishing, the Valtorta F1 is a fast and efficient roller coating machine which is suitable for finishing flat panels, doors, parquet, and furniture panels. Its technology and features are perfectly integrated into high-speed lines. Ideal for color, oils, primers, and finishes.

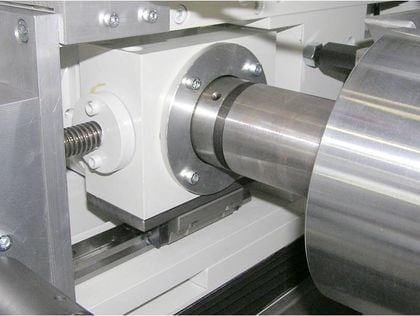

ACCURACY: It is a fast and efficient machine even in critical finishing thanks to the high-precision application head, it moves on linear guides controlled by a device for managing and controlling the working pressure between the applicator and the dispensing rollers. Accurate weight control of the applied product.

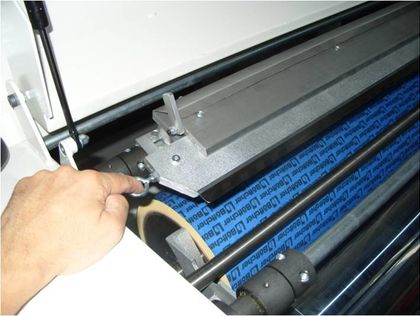

EASE: Control system integrated into the machine, clearing blades, and reclaiming system completely extractable, and quick change system for applicator roller.
CONTROL: Control software is integrated in the machine with functional keys for adjusting working speeds.

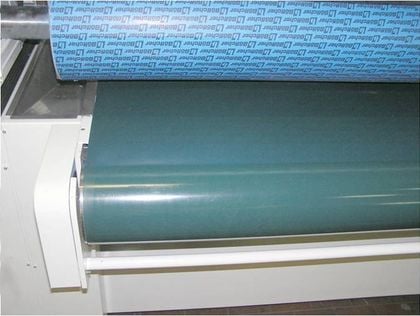

WORKED PIECE WIDTH: Panel width up to 1300 mm.
| valtorta f1 | |
| belt width | 1370 mm |
| roller width | 1500 mm |
| working height | 900 (±20) mm |
| panel thickness | 3-120 mm |
| min. panel length | 300 mm |
| application roller diameter | 245 mm |
| standard hardness of the application roller | 50 Sh |
| doctor roller diameter | 175 mm |
| feed speed | 7 - 20 m/min |
| compressed air consumption | 25 NI/min |
| installed power approximately | 2 kW |
