Beam saws - Throughfeed panel saws - celaschi sp
Photos may include optional equipment.

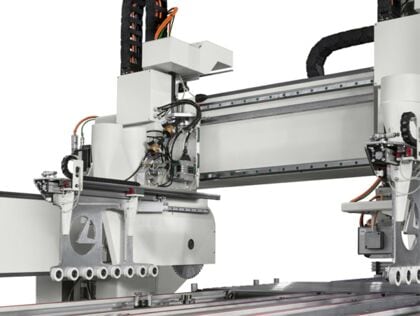

celaschi sp are numerically controlled multi rip saws ideal for cross-cutting boards. They are designed with a variable number of operating units equipped with a scorer and a saw-blade, which allow throughfeed sizing in high productivity lines. All the unit positionings are performed with brushless motors.

Advantages

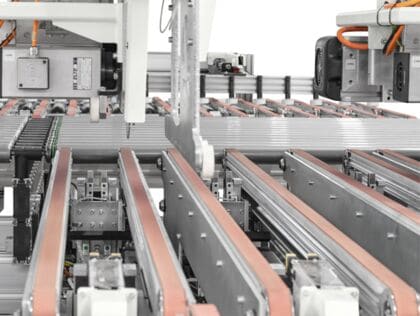

HIGH PRODUCTION RATES with the workpiece transport system which allows a feed speed of up to 70 m/min.

MAXIMUM FLEXIBILITY OF CUTTING PATTERNS thanks to independent, electronically positioned operating units.

QUICK PROGRAMMING AND REPORTING with the eye-M PRIME touch screen control station and Maestro active square machine software.

Technical data

Processable materials

wood

Composition

nr.  cutting units

from 3 to 12 (one by one excludable)

Dimensions of each board max.

mm

5000x1250

Dimensions of finished workpiece

customized

Feed speed max.

m/min 70

Scoring unit motor power

kW 3 at 6000 rpm

Cutting-off unit motor power

kW 10 at 4500 rpm



Media
