L'invincibile ti 5

(512) 931-1962

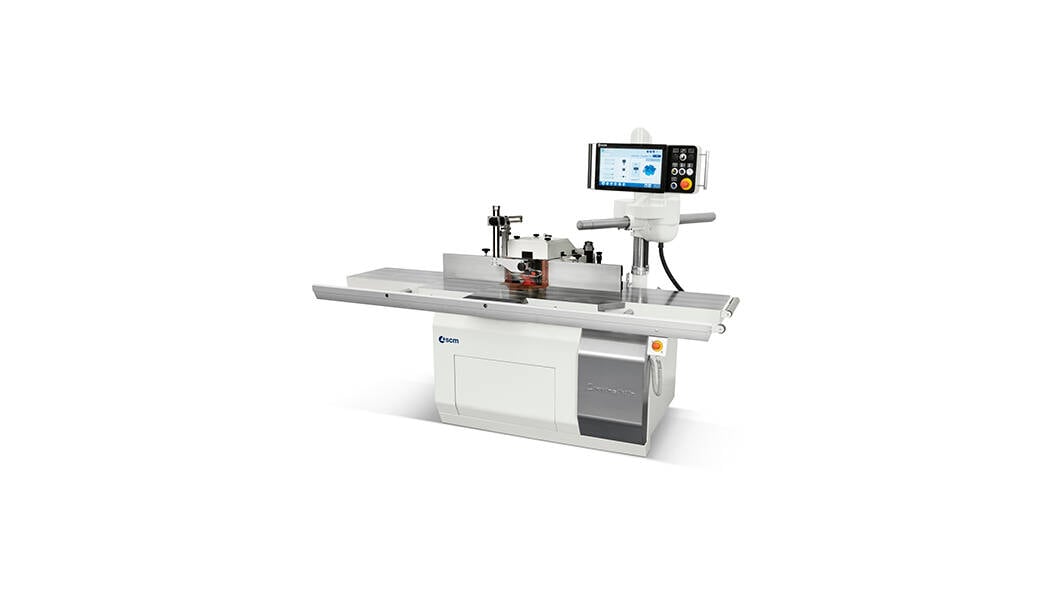

Joinery machines - Moulders - L'invincibile ti 5
Photos may include optional equipment.

The exclusive choice for your success.
Buying a "L'invincibile ti 5" machine means you get a customised solution because it is the result of years of experience, technical research, Italian creativity.

Console eye-S main functions:
- connectivity among machines belonging to the same company network and 4.0 Industry preset
- sharing of work programs and tools database
- activity monitoring and reporting on the use of the machine
- self-diagnosis, tele-service and link to troubleshooting

Advantages

Electrospindle: machining centre technology service for the woodworker.
Absolute machining precision and absence of vibration due to the perfectly balanced structure of the electrospindle. The electrospindle’s direct drive eliminates maintenance procedures common with conventional belt driven systems.

"FAST" sectional worktable: the best support for the workpiece. Provides support for the work piece being machined also close to the tool, allowing the adjustment with mounted tools.

"FLEX" fence: immediately in the correct position. A single simple movement to retract and re-position in an instant and accurately position the fence on the worktable with such precision that no other control is necessary (Scm patent).

eye-S console: the pleasure of controlling all machine functions from the control panel. The new control panel, with its attractive design, allows easy and intuitive machine programming, combining the 15” colour touch-screen display and the Maestro active user interface.

Technical data
L'invincibile ti 5
Max. useful spindle length mm / inches 140 / 5.5
Spindle speed  rpm 900 - 12000
Max. diameter of the profiling tool mm / inches 250 / 10
Max. tool diameter retractable under the table at 90° mm / inches 300 / 11.8
Max. diameter of the tenoning tool mm / inches 300 / 11.8
Three-phase motor power Hp 13
