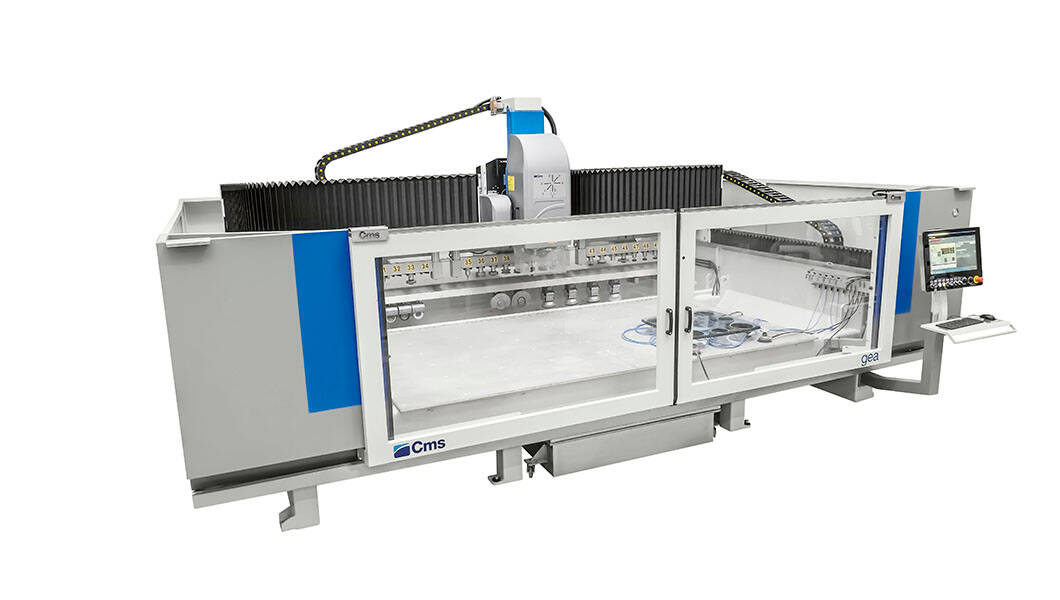

3-4-axis horizontal machining center

3 or 4-axis (optional) Numerically Controlled machining center to machine both thin and thick flat glass as well as laminated glass and bullet-proof glass. This machine can perform all types of grinding, polishing, drilling, milling, sawing with diamond blade, V-Grooving, engraving, and 5° bevelling.

  • gantry system on the Y-Axis provides the bridge motion via two brushless servo motors synchronized by the Numeric Control, in order to ensure extreme accuracy by reducing positioning errors caused by mechanical elasticity

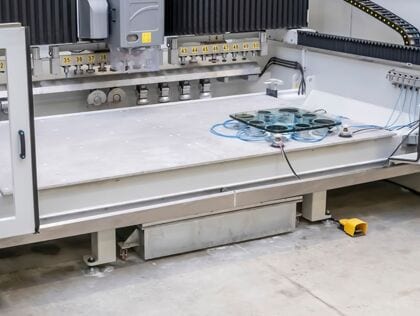

  • large duraluminum work surface. The 780 mm ( 31 in ) worktable height makes it easier to load and unload
  • monoblock, ribbed, electrically welded, and stress relieved ultra-thick steel base guarantees sturdiness and rigidity for difficult machining work and the longevity of the machine
  • pre-setting is integrated into the tool magazine as to not infringe on the working area of the table
  • dynamic compensation of the polishing wheels for excellent machining quality
Advantages

SOLID ALUMINIUM SURFACE

18mm, duraluminum worktable for greater stability and durability. The table can be re-surfaced over 10X times.


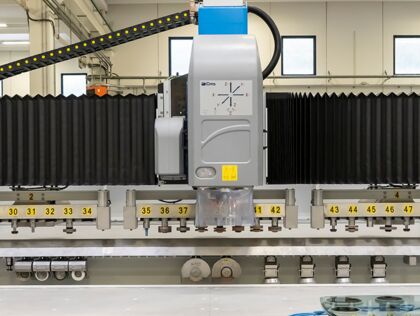

LIMITLESS MAGAZINES

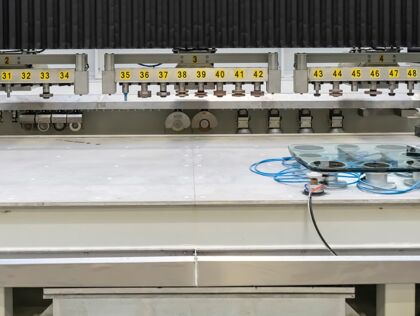

The extensive modularity of the magazines means the machine can be adapted for any requirement. The magazines can be installed at the back, on the sides, or even under the bridge for a 9.5 second tool change.


EASY LOADING

the worktable’s height of 780 mm (31 in) and reduced distance of the table from the operator, places CMS Gea at the top of its class for loading ergonomics.

Technical data
X AXIS STROKE   3800 mm / 150 in
Y AXIS STROKE   2550 mm / 88 in
Z AXIS STROKE   420 mm / 16 in
MAXIMUM WORKABLE PART SIZE   3700 x 2000 mm / 146 x 79in
ROTARY AXIS (OPTIONAL) C 360° stepless
TOOL CHANGE STATIONS   12 ÷ 120
ELECTROSPINDLE
POWER   13,5 KW / 18 HP (S1)
21 KW / 28 HP (S6)
30 KW / 40 HP (S1)
36 KW / 48 HP (S6)
REVOLUTION   0 ÷ 15000 rpm 0 ÷ 12000 rpm
OVERALL DIMENSIONS A 4715 mm / 185 in
B 6350 mm / 250 in (8070 mm / 318 in with open doors)
H 2884 mm / 113 in
ELECTRICAL CABINET   integrated in the base
WEIGHT   7000 kg / 15430 lb
