brembana micra 2.0

(512) 931-1962
Machining centers - 3/4 axes CNC machines - brembana micra 2.0
Photos may include optional equipment.

3 axis CNC sink bowl machine

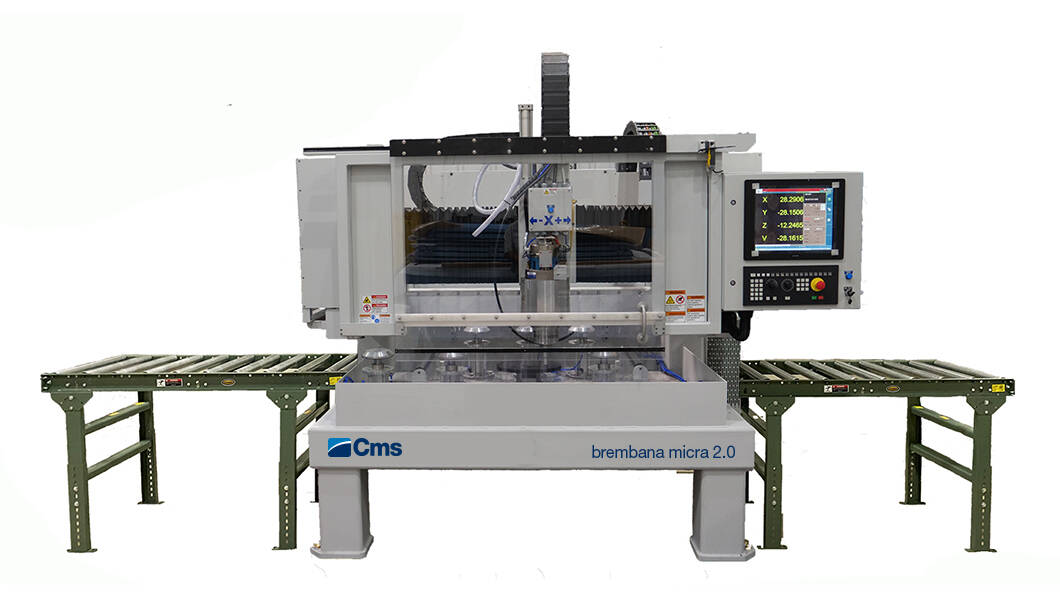

CMS North America’s technological commitment generated the brembana micra 2.0 for top quality results in marble, granite, ceramic, porcelain, and composite stone vanity fabrication. Built in USA with all the industry leading features of a standard Brembana CNC machine, the brembana micra 2.0 is one of the strongest in its class: an 18 HP (13.5kW) standard Brembana Electro-Spindle, 10 positions automatic tool changer, a compact working area of 40”X30”, and an easy loading/unloading system. This machine is programmed by CMS-SINK LINK software, developed by CMS’s engineers and the working piece size is not restricted to the working area of the machine, which means the brembana micra 2.0 is capable of loading full size slabs. If you seek to increase your capacity without resorting to hand fabrication, the brembana micra2.0 is the premiere affordable solution. The machine reflects CMS’s mission as an industrial partner rich in solutions aimed at engineering and process optimization for compact, high-production fabrication.

It is the ideal machine for the production of:

  • sink cut-outs
  • small vanities
  • countertops
Advantages

UNRIVALLED MECHANICS

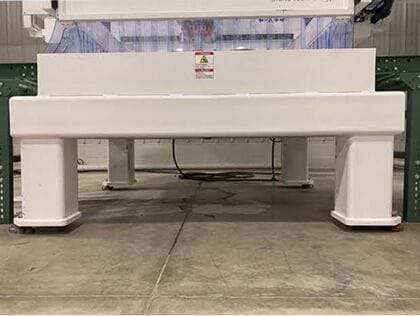

Heavy monoblock structure ensures optimal absorption of the stresses derived from machining. It doesn't require any foundations.

EASY TO USE

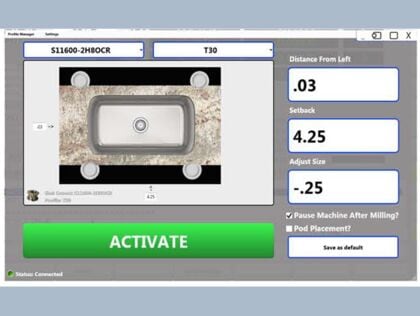

Userfriendly CMS-Sink software, on-board and with a parametric library. It is installed on Fagor 8070 OL CNC Controller.

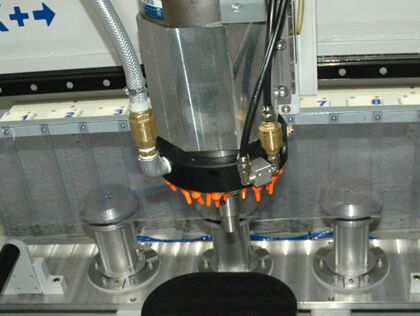

18 HP ELECTROSPINDLE

standard Brembana Electro-Spindle 18 HP (13,5 Kw)

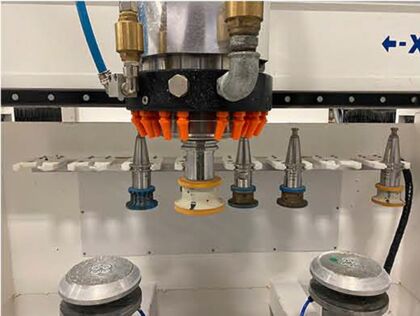

TOOL HOLDER

10 postiions automatic tool holder

Technical data
X axis maximum stroke 1270 mm / 50 in
Y axis maximum stroke 1016 mm / 40 in
Z axis maximum stroke 229 mm / 9 in
Worktable dimensions X/Y 1016x762 mm / 40x30 in
Motor power and rotation speed (s9) 13,5 kw/ 18 HP - 0÷15000 rpm
motor torque 22,6 Nm at 6000 rpm
Tool 150 mm 6°
Number of tools 10
Miminum water pressure 4 bar / 60 psi
Minimum air pressure 6 bar / 95 psi - 5 CFM
Water consumption 40 l/min / 10,6 gal/min
Standard - voltage and frequency 480V - 60 Hz, 3 phase
Special 208V - 600V - 60Hz, 3phase
Machine dimensions 3264 x 2438 x 2362 mm / 128,5 x 96 x 93 h in
