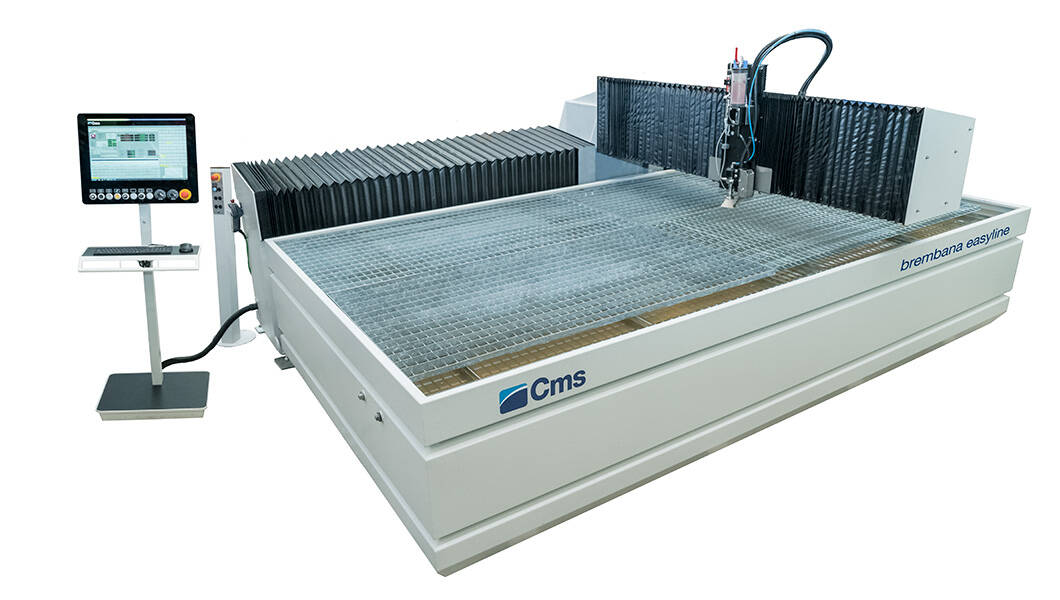

brembana easyline
(512) 931-1962
3- and 5-axis water jet cutting system
brembana easyline is a high-performance, versatile, modular water jet cutting system - either pure or hydroabrasive - which can be employed in a number of application fields for the most diverse production demands.
- the cantilever structure, with a separate tank, allows an easy access to the worktable. Loading and removing material is quick and easy.
- all axes’ motions are carried out through hardened and ground rack and pinion.
- the thermowelded bellows provide complete protection of the guides and the rack from water and dust.
- the steel structure undergoes an anti-rust treatment through sandblasting and ceramic painting, which results in a higher resistance against corrosion.
- the tank is set up for the installation of a dredge system for the abrasive removal
Brembana easyline is also available with the following configurations:

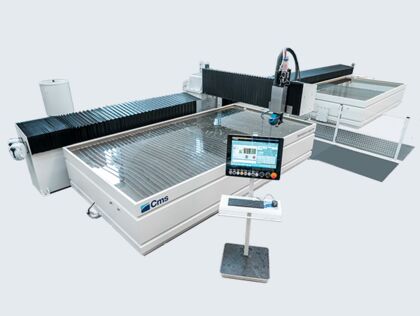

- Twin (solution for pendular working with double tank)
- Twin+ (single-tank pendular cutting system)
- Dual Bridge
- Scanner safety
- Manual Pivotable 3ax head
EASY OPERATIONS: ACCESS OF WORKTOP FROM 3 SIDES
Excellent access to the cutting area, the cantylever structure with separate catch tank offers easy access on 3 sides to load and unload the material.
EASY MAINTENANCE: 91% LESS COST FOR EXHAUSTED ABRASIVE REMOVAL
The catch tank with special anti-rust ceramic painting is designed to fit the new Evo4 chain dredge for exhausted abrasive removal even later after installation, with 91%* less maintenance costs.
EASY SEALING: SAFE PROTECTION FROM DUST AND WATER
The heat-sealed bellows provide complete protection of linear guides and racks from dust and water during the cutting, guaranteeing long lifetime without affecting the cutting quality.
UP TO 55% MORE PRODUCTIVITY
The versatility of waterjet to cut a wide range of materials, with custom solutions to increase th productivity up to 55%, like single or double tank pendulum cycle or the multiple cutting heads configuration.
| TECHNICA DATA | ||||
|---|---|---|---|---|
| Model | 1010 | 2020 | 2040 | 2060 |
| X Axis | 1000 mm / 39 in | 2000 mm / 79 in | 4000 mm / 157 in | 6000 mm / 236 in |
| Y Axis | 1000 mm / 39 in | 2000 mm / 79 in | 2000 mm / 79 in | 2000 mm / 79 in |
| Z Axis | 220 mm / 8.6 in (150 mm / 5.9 in with 5 axis head) | 220 mm / 8.6 in (150 mm / 5.9 in with 5 axis head) | 220 mm / 8.6 in (150 mm / 5.9 in with 5 axis head) | 220 mm / 8.6 in (150 mm / 5.9 in with 5 axis head) |
| B Axis | ±60° | ±60° | ±60° | ±60° |
| Support plane | 1210x1225 mm / 47x48 in | 2210x2225 mm / 87x87 in | 4210x2225 mm / 166x87 in | 6210x2225 mm / 244x87 in |
| Overall dimensions with Light Barriers | 4680x4174 mm / 184x164 in | 5680x5174 mm / 224x204 in | 5689x7208 mm / 224x284 in | 5680x9242 mm / 224x364 in |
